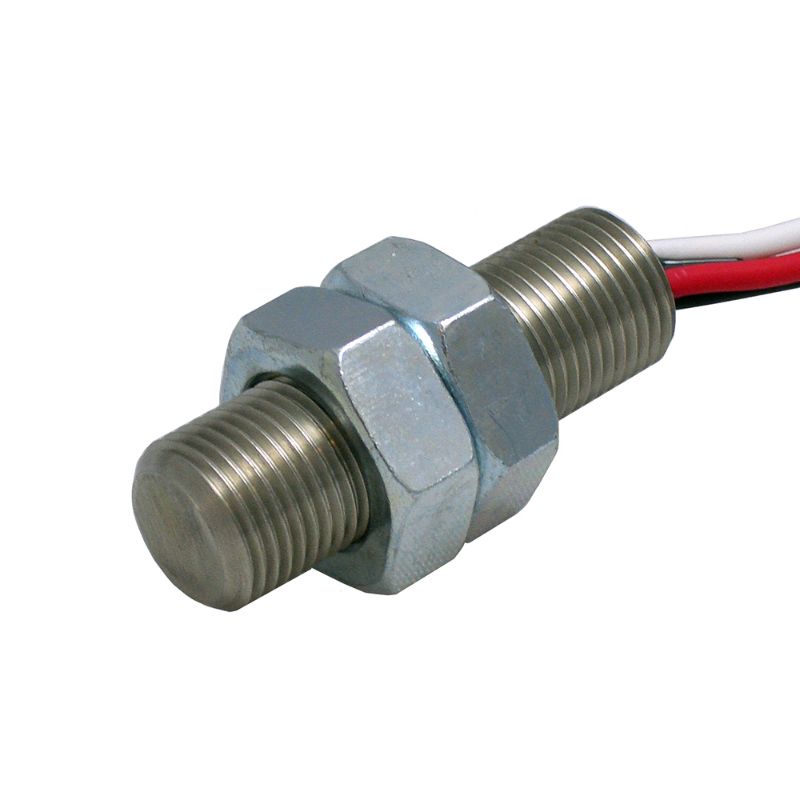

Parker 01712ECD - Gear Speed Sensor - GS

Name: Parker 01712ECD - Gear Speed Sensor - GS
SKU: 01712ECD
Price: 80.63 USD
Availability: InStock

Parker's GS Gear Speed Sensors provide a sinking output when detecting a ferrous target. They use back-biased, Hall Effect technology for zero speed sensing capability. Offered in multiple mounting configurations, they are immune to alignment issues.

AFP Availability:

6 In Stock

Richmond, VA	5
Sumter, SC	1

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 01712ECD

$80.63/each

Qty:

Products specifications

Attribute name	Attribute value
Frequency	0 to 10	Industry	Agriculture
Power Supply Voltage	5 to 24	Maximum Operating Temperature	85
Sensor Type	Speed	Division	Electronic Motion and Controls Division
Operating Current	13.5 mA max.	Signal Output	Open Collector
Minimum Operating Temperature	-40	Electrical Connection	DTM04
Output Current Rating	25	Mounting Type	5/8"-18 UNF Thread
Ingress Protection Rating	67	Air Gap	0 to 5
Housing Material	Stainless Steel	Model Number	GS60
