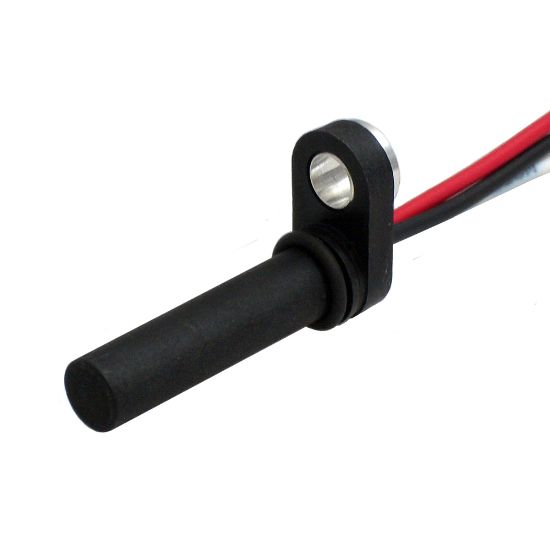

Parker 01711ECD - Gear Speed Sensor - GS

Parker's GS Gear Speed Sensors provide a sinking output when detecting a ferrous target. They use back-biased, Hall Effect technology for zero speed sensing capability. Offered in multiple mounting configurations, they are immune to alignment issues.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01711ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	125 °C	Industry	Material Handling
Ingress Protection Rating	67	Mounting Type	Flanged
Housing Material	Glass-filled Nylon	Sensor Type	Speed
Signal Output	Open Collector	Frequency	0 to 15 kHz
Output Current Rating	25 mA	Electrical Connection	DTM04
Minimum Operating Temperature	-20 °C	Air Gap	0 to 3 mm
Operating Current	6 mA max.	Division	Electronic Motion and Controls Division
Power Supply Voltage	5 to 16 VDC Regulated	Model Number	GS50
