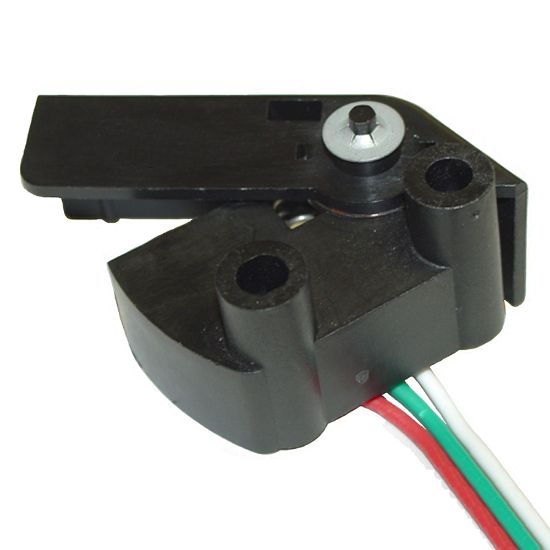

Parker 01710ECD - Analog Lever Distance Sensor - ADS

Parker's Analog Lever Distance Sensors are Hall Effect devices with an output voltage dependent upon the angular position of a lever arm. They utilize non-contacting technology and provide linear output over one inch (35 degrees) of travel.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01710ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Electrical Connection	DTM04
Sensor Type	Linear Lever	Division	Electronic Motion and Controls Division
Housing Material	Glass-filled Nylon	Ingress Protection Rating	66
Linearity	±5%	Repeatability	±1 %
Maximum Operating Temperature	85 °C	Working Length	1 inch
Power Supply Voltage	5 VDC	Signal Output	0.5 to 4.5 VDC
Mounting Hole Diameter	5.8 mm	Model Number	ADS50
