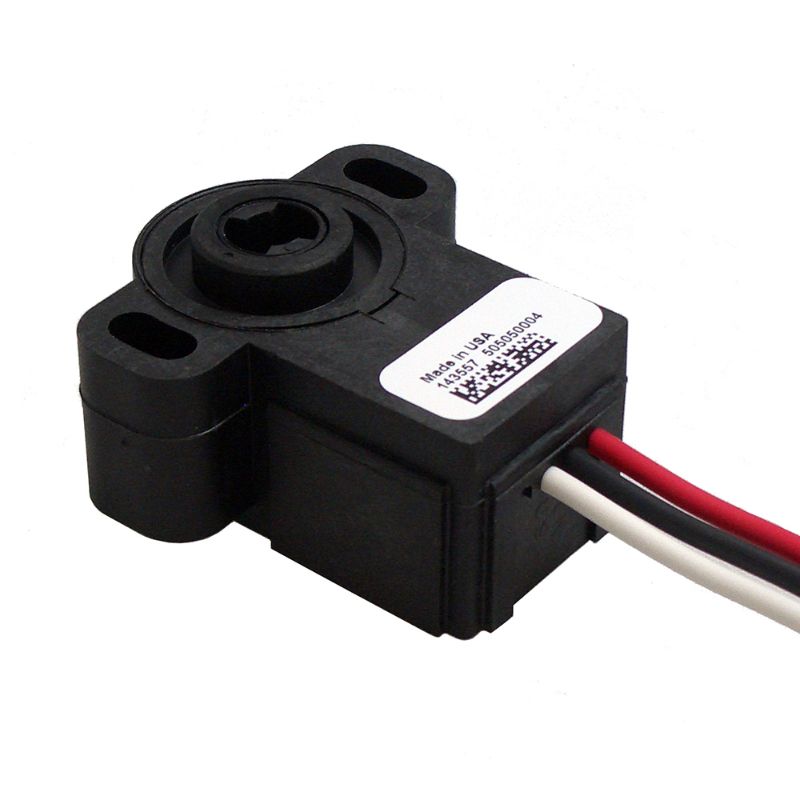

Parker 01709ECD - Rotary Position Sensor - RS

Parker's Rotary Position Sensors are Hall Effect devices with an output voltage dependent upon the angular position of the sensor. They utilize non-contacting technology and are offered in several linear ranges up to 360 degrees of rotation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01709ECD

$86.63

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Model Number	RS52
Housing Material	Glass-filled Nylon	Return Type	Spring CCW
Signal Output	0.5 to 4.5 VDC	Mounting Option	Hole Spacing 37 mm
Operating Current	12 mA max.	Power Supply Voltage	5 VDC Regulated
Maximum Operating Temperature	125 °C	Hysteresis	1 %
Output Current Rating	1 mA (each output)	Electrical Connection	DTM04
Sensor Type	Rotation	Drive Axis Type	Hour Glass Driver
Industry	Transportation	Number of Outputs	1
Minimum Operating Temperature	-40 °C	Maximum Travel Angle	118 °
Ingress Protection Rating	66	Division	Electronic Motion and Controls Division
Maximum Output Error	3 %	Mounting Hole Diameter	5.3 mm Slotted
Electrical Output Range	90°
