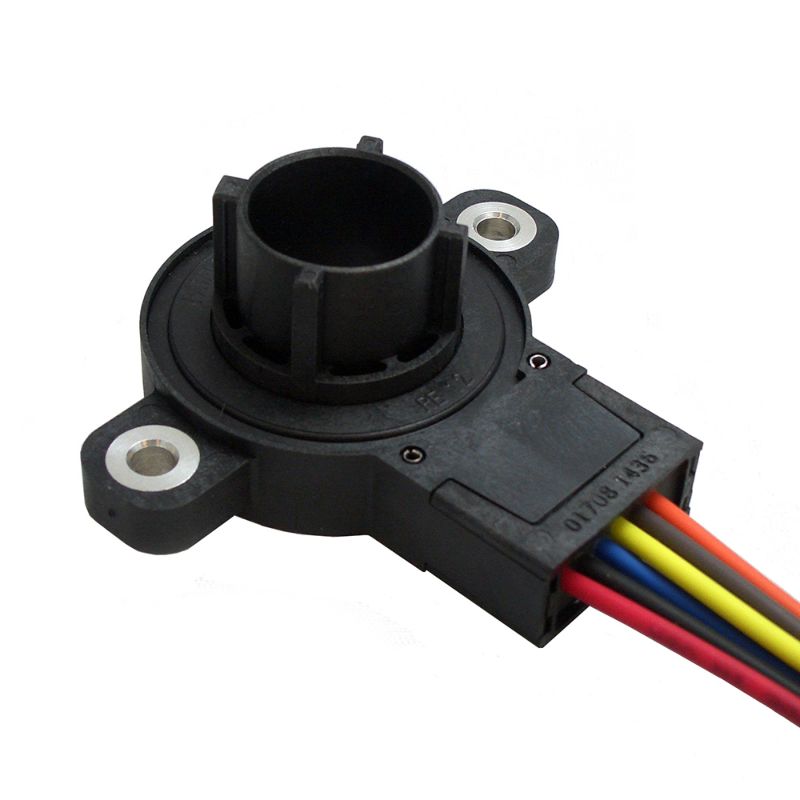

Parker 01708ECD - Rotary Position Sensor - RS

Parker's Rotary Position Sensors are Hall Effect devices with an output voltage dependent upon the angular position of the sensor. They utilize non-contacting technology and are offered in several linear ranges up to 360 degrees of rotation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01708ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Minimum Operating Temperature	-40 °C
Mounting Option	Hole Spacing 63.5 mm	Maximum Travel Angle	170 °
Return Type	None	Maximum Operating Temperature	125 °C
Model Number	RS60	Drive Axis Type	Thru Hole Driver
Ingress Protection Rating	66	Number of Outputs	2 opposing
Maximum Output Error	5 %	Output Current Rating	1 mA (each output)
Signal Output	0.5 to 4.5 VDC	Housing Material	Glass-filled Nylon
Industry	Agriculture	Operating Current	24 mA max.
Mounting Hole Diameter	5.3 mm	Hysteresis	3 %
Sensor Type	Rotation	Electrical Connection	DTM04
Power Supply Voltage	5 VDC	Electrical Output Range	120°
