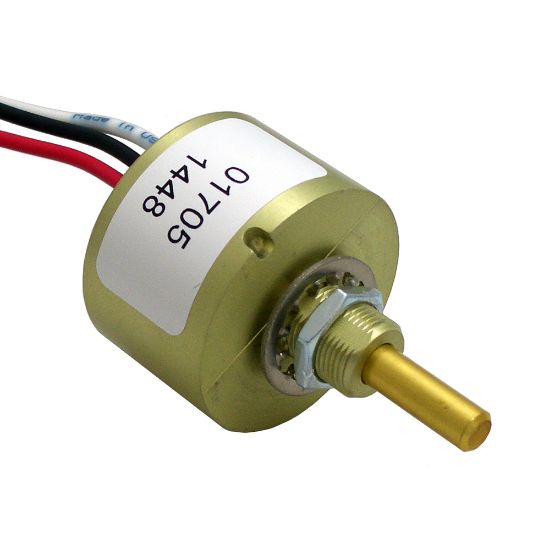

Parker 01705ECD - Rotary Control - RF

Parker's Rotary Controls are panel mount Hall Effect devices with an output voltage dependent upon the angular position of it's driver. They have non-contacting electronics and are offered in multiple angular ranges to fit most every application need.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01705ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Ingress Protection Rating	66	Maximum Travel Angle	150
Minimum Operating Temperature	-40	Mounting Option	Panel Mount (Panel Nut and Washer included)
Division	Electronic Motion and Controls Division	Signal Output	0.5 to 4.5
Industry	Agriculture	Operating Current	12 mA max.
Model Number	RF50	Drive Axis Type	Knob (6.3mm D-drive)
Electrical Connection	DTM04-3P	Output Current Rating	1
Detents	0	Sensor Type	Rotation
Maximum Operating Temperature	85	Power Supply Voltage	5
Hysteresis	< 1	Maximum Output Error	4
Housing Material	Aluminum, Annodized	Electrical Output Range	90°
Number of Outputs	1
