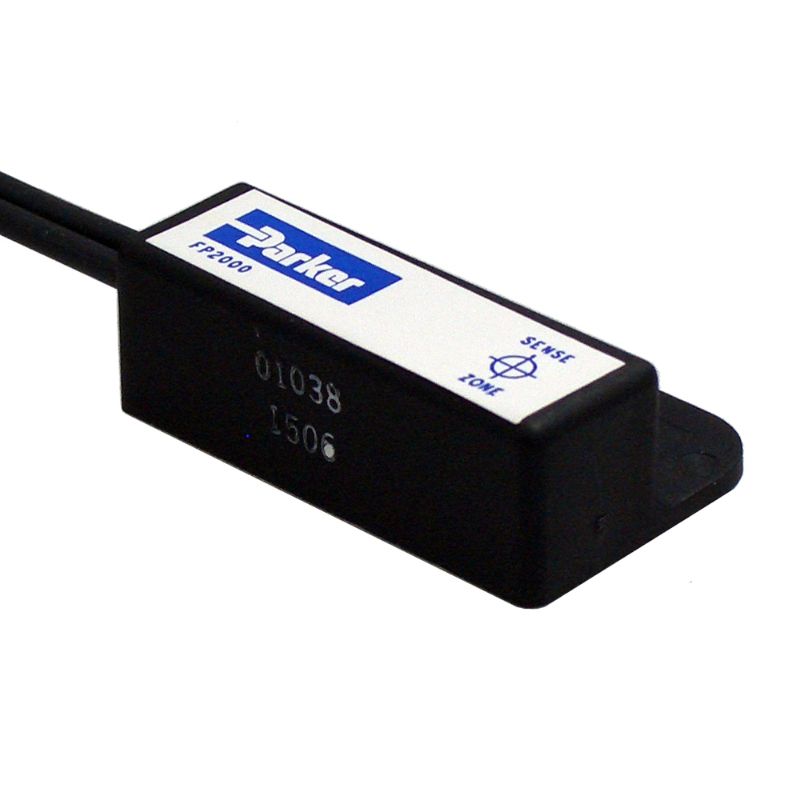

Parker 01038ECD - Ferrous Proximity Sensor - FP

Parker's Ferrous Proximity Sensors use back-biased reed switch technology non-contacting technology to detect the presence of ferrous targets. Because they are non-contacting with no moving external components they are well suited for many applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01038ECD

$72.75/each

Products specifications

Attribute name	Attribute value
Model Number	FP2000	Maximum Switching Voltage	100
Contact Rating	10	Mounting Hole Diameter	6.0 mm (x2)
Ingress Protection Rating	67	Release Air Gap	11.4
Sensor Type	Proximity	Division	Electronic Motion and Controls Division
Electrical Connection	DT04-4P	Housing Material	Glass-filled Nylon
Sense Air Gap	5.6	Maximum Switching Current	0.5
Switch Type	NO	Sensing Surface	Site B
Sense Air Gap Min (mm)	5.1
