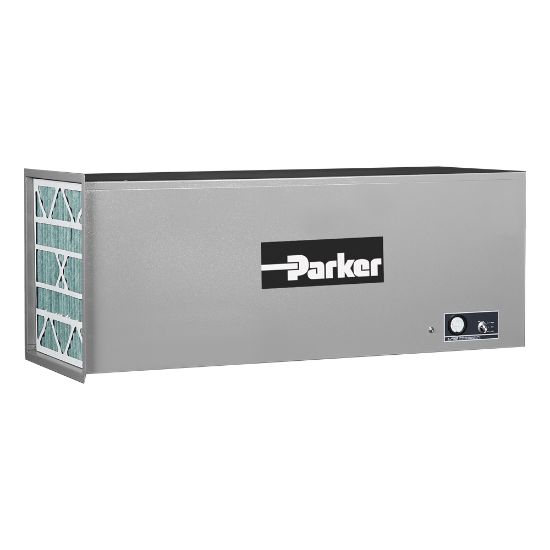

Parker 01-1060-01 - D Series Ambient

D Series collectors consists of the DA, DB and DBM. These series of dust collectors fall into the ambient ceiling mounted dust collector category.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01-1060-01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	DustHog	Division	Industrial Gas Filtration and Generation Division
Body Material	Mild Steel	Color	Hog Gray
Paint Type	Powder Coating	Depth	70
Width	24.5	Height	26.25
Application	Dust, Fume, Mist, Smoke	Equipment Type	Ambient Media Collector
Weight	270	Filter Material	Media Bag
Optional Accessories	Call Parker	Filter Included	No
Model Number	DB	Motor Power Output Rating	3.0 HP
Air Flow Rate	2300 - 3600 CFM	Input Supply Voltage	208V/3P/60H
Control Method	External motor control	Current	7.8 amp
