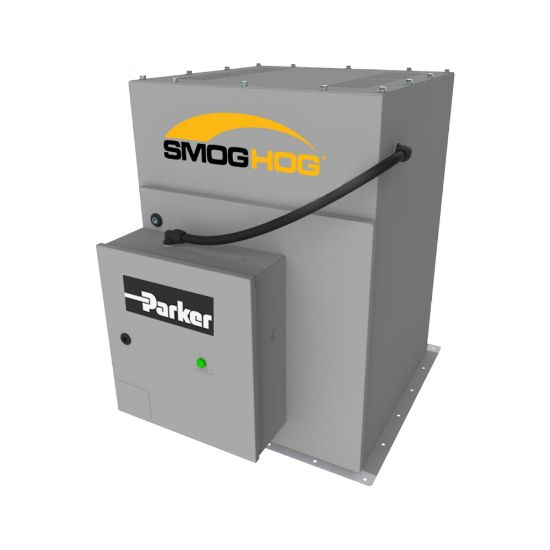

Parker 01-10174 - MSH - Machine Mounted ESP mist collector

Direct mount to machine mount mist collector for water and oil-based coolants. Ready to use, energy efficient, all-in-one, electrostatic precipitator ESP mist collector. Simply install and connect input power. Additional accessories available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01-10174

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	SmogHog	Application	Mist, Smoke
Division	Industrial Gas Filtration and Generation Division	Color	Hog Gray
Paint Type	Powder Coated	Equipment Type	Direct Mount ESP mist filter
Filter Type	Electrostatic Precipitator	Control Method	Potentiometer
Depth	22.4	Width	30
Height	22.5	Current	5
Motor Power Output Rating	1.45	Optional Accessories	Inlet connectors
Filter Stages	Single Pass	Flow Characteristic	Left to Right
Weight	192 lbs	Sound Level	73.5 dB(A)
Model Number	MSH-11-H	Air Flow Rate	750 - 1500 CFM
Input Supply Voltage	230V/1P/60H
