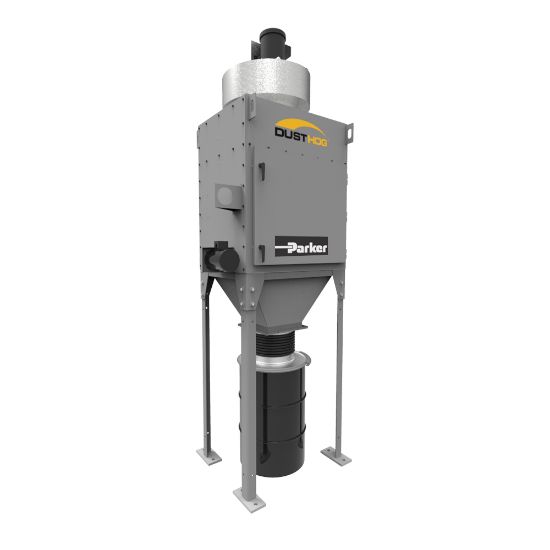

Parker 01-10126 - SDC - Shaker Dust Collector

The SDC shaker dust collectors are ideal for
intermittent processes. The SDC offers the flexibility and versatility needed to remove harmful pollutants resulting from common manufacturing processes in both institutional and industrial applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01-10126

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	78 inch	Height	112 inch (w/o blower)
Weight	1405 lbs	Body Material	Mild Steel
Division	Industrial Gas Filtration and Generation Division	Brand	DustHog
Application	Wood,Plastic, Paper, Chemical, Food	Color	Hog Gray
Depth	30 inch	Paint Type	Powder Coating
Equipment Type	Stationary Medial Collector	Filter Material	Bag Media Cartridge
Additional Options	20 and 55 gallon drum, slide gate, extended legset	Model Number	SDC-420
Control Method	External control and motor starter	Filter Included	No
Input Supply Voltage	230-460V/3P/60H	Optional Accessories	Shaker, Motor Starter, Remote Starter, Magnahelic
Motor Power Output Rating	5.0, 7.5, 10, 15 HP	Air Flow Rate	4200 CFM
Inlet Connection Size	8, 10 in	Motor Control Options	Motor Starter not included
