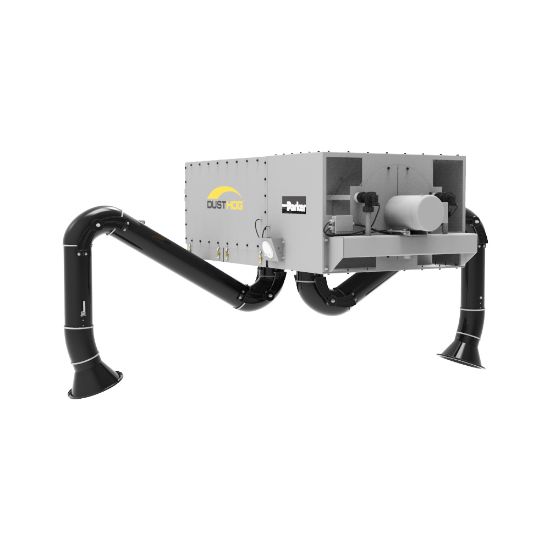

Parker 01-10077-0001R - SCB ceiling mounted source capture dust collector

SCB is a ceiling mounted source capture dust collector for dry dust and fume including welding fume using extraction arms or ducting.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01-10077-0001R

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	45	Height	39.625
Weight	775 lbs	Body Material	Mild Steel
Division	Industrial Gas Filtration and Generation Division	Brand	DustHog
Application	Dust, Fume, Smoke	Color	Hog Gray
Depth	98	Current	4.8 - 9.6 amp
Paint Type	Powder Coating	Equipment Type	Source Capture Media Collector
Air Consumption	0.78 SCFM per pusle	Filter Material	Cartridge
Model Number	SCA Right Discharge	Control Method	External Motor Starter
Filter Included	No	Input Supply Voltage	230-460V/3P/60H
Optional Accessories	(2) 8 inch 7'/10'/12' extraction arms or inlet collar	Motor Power Output Rating	3.0 HP
Air Flow Rate	2000 CFM
