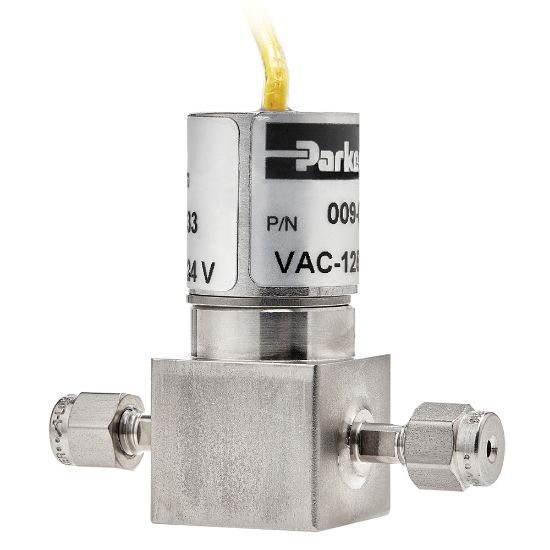

Parker 009-0100-900 - Series 9 - Miniature Calibrant Valve

The Series 9 solenoid valve combines extreme pressures, tight leak specifications and wide temperature ranges with an unmatched compact size.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 009-0100-900

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	1.0 inch	Height	2.1 inch
Length	25.4 mm	Weight	3.1 oz
Function	2-Way	Flow Rate	up to 130 SLPM
Leak Rate	1 x 10-7 Atm Cc/sec Helium	Orifice Size	0.030 inch
Body Material	Stainless Steel 316	Configuration	n/a
Input Voltage	24 VDC	Mounting Type	Mounting Screw
Seal Material	Vespel	Actuation Type	Solenoid
Control Method	Current or Voltage	For Fluid Type	Liquids
Operation Type	Electronic	Connection Size	1/16 inch
Connection Type	A-LOK® Compression	Shipping Weight	0.75
Maximum Flow Rate	130 SLPM	Power Consumption	12 W
Max Order Quantity	9	Standard Lead Time	20
Division	Precision Fluidics Division	Industry Application	High Pressure Gas Control
Electrical Connection	12" Wire Leads	Out of Stock Lead Time	40
Vacuum to Pressure Range	Vacuum to 1250 Psi	Maximum Operating Pressure	86.2 bar
Maximum Operating Temperature	105 °C	Minimum Operating Temperature	4 °C
Orifice Size	0.030" (0.76 mm)	Voltage (VDC)	12
Porting	1/16" A-Lok	Valve Type	2-Way Normally Closed
