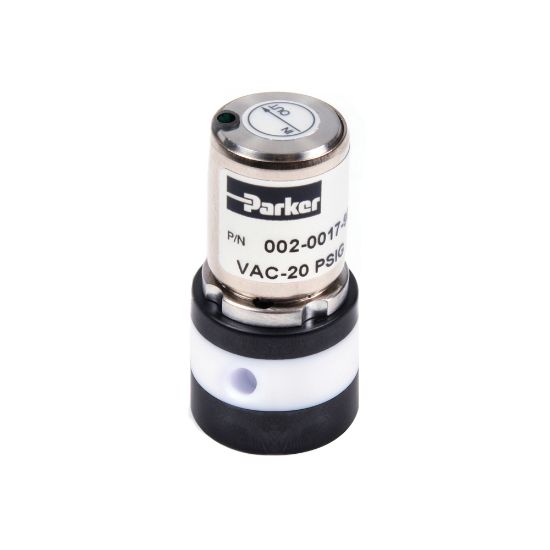

Parker 002-0010-900 - Series 1 and 2 – Miniature Inert PTFE Isolation Valves

Parker's series 1 and 2 families of Miniature PTFE Isolation valves provide an inert wetted path ideal for biocompatibility and aggressive liquids.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 002-0010-900

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Precision Fluidics Division	Weight	2.7 oz
Shipping Weight	0.35	Max Order Quantity	9
Standard Lead Time	20	Out of Stock Lead Time	40
Width	1.0 inch	Height	53.34 mm
Length	1.0 inch	Function	2-Way
Flow Rate	up to 600 cm3/min	Leak Rate	< 0.016 cm3/min of Helium @ 150 Psi
Orifice Size	0.060 inch	Body Material	PTFE
Configuration	n/a	Input Voltage	24 VDC
Mounting Type	Mounting Screw	Seal Material	PTFE
Actuation Type	Solenoid	Control Method	Current or Voltage
For Fluid Type	Liquids	Operation Type	Electronic
Connection Size	1/4"-28 UNF 2B inch	Connection Type	Threaded Port
Wetted Material	Borosilicate Glass	Maximum Flow Rate	600 cm3/min
Power Consumption	4.2 W	Cycles per Lifetime	10 Million
Industry Application	Insufflators	Electrical Connection	12" Wire Leads
Vacuum to Pressure Range	Vacuum to 20 Psi	Maximum Operating Pressure	1.4 bar
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	4 °C
Voltage (VDC)	24	Valve Configuration Type	2-Way Normally Closed
