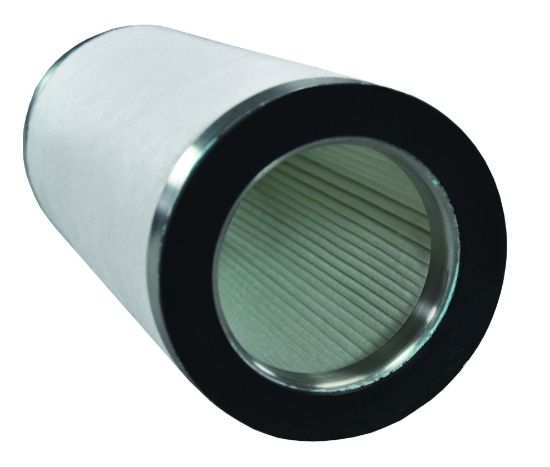

Parker 00-032957 - P-CEPTOR™ NGGC Gas Coalescer Cartridge

P-Ceptor™ NGGC Gas Coalescers use pleated, treated glass media to provide effective removal of small aerosol mist and liquid droplets from natural gas streams.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 00-032957

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	PECO	Division	Industrial Process Filtration Division
Industry	Oil and Gas	Technology	Filtration
Application	Gas Coalescing	Product Type	Filter Cartridge
Flow Direction	Inside-to-Outside	Quantity per Box	4
Division	Industrial Process Filtration Division	Filter Construction	Pleated
Changeout Pressure Differential	12 to 14 psid	Product Series	NGGC
Maximum Pressure Differential	25 psid	Model Number	ELMT NGGC-336 PL-51
pH Range	3-9	Micron Rating	PL-51: 99.97% ≥ 0.3 Liquid Droplets
Filter Material	Glass	Maximum Operating Temperature	240 °F
Body Material	N/A	Core Material	Expanded Metal
Seal Material	Viton	Cartridge Length	36"
End Cap Material	304SS	End Cap Configuration	SOE - Closed top w/ bolt hole, open bottom
Nominal Inside Diameter	3"	Nominal Outside Diameter	4.4"
