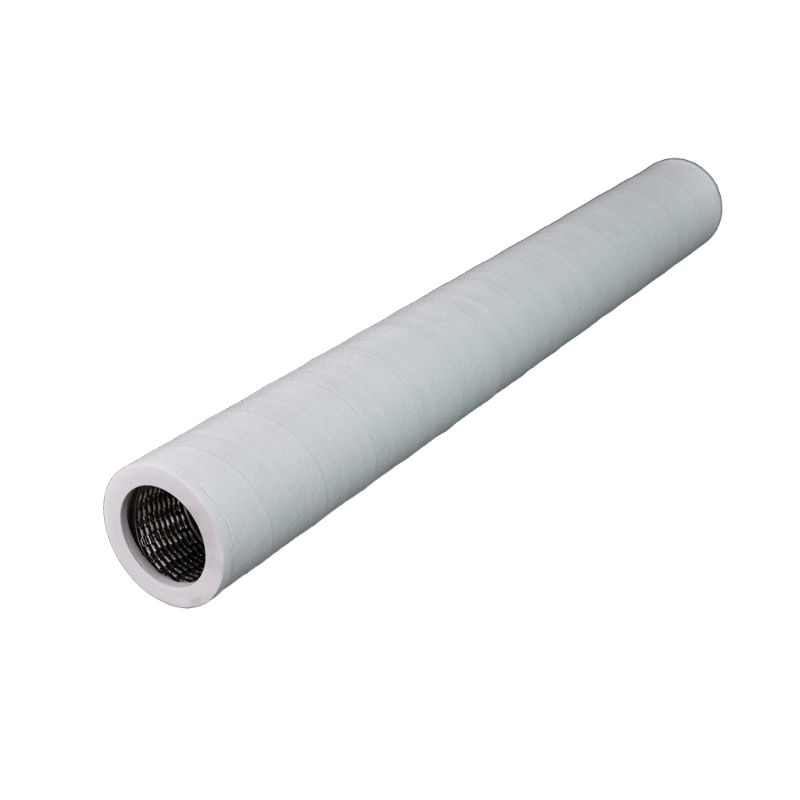

Parker 00-032873 - PEACH® DYNACEPTOR™ NGGC & PZC Gas Coalescer Cartridge

PEACH® DynaCeptor™ NGGC & PZC Gas Coalescers use PEACH® technology media to provide effective removal of small aerosol mist and liquid droplets from natural gas streams.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 00-032873

Products specifications

Attribute name	Attribute value
Brand	PECO	Division	Industrial Process Filtration Division
Industry	Oil and Gas	Technology	Filtration
Application	Gas Coalescing	Product Type	Filter Cartridge
Flow Direction	Inside-to-Outside	Quantity per Box	4.0
Division	Industrial Process Filtration Division	Filter Construction	PEACH Depth
Changeout Pressure Differential	12 to 14 psid	Product Series	PZC
Maximum Pressure Differential	25 psid	pH Range	3-9
Model Number	ELMT PZC-336-C-CE-B	Body Material	N/A
Core Material	Tin-Plated Steel	Micron Rating	PL-01/STANDARD: 99.5% ≥ 0.3 Liquid Droplets, ≥50PPB Effluent
Seal Material	Buna-N	Filter Material	Polyester
Cartridge Length	36"	End Cap Material	Tin-Plated Steel
End Cap Configuration	SOE - Closed top w/ bolt hole, open bottom	Nominal Inside Diameter	3"
Nominal Outside Diameter	4.5"	Maximum Operating Temperature	240 F
