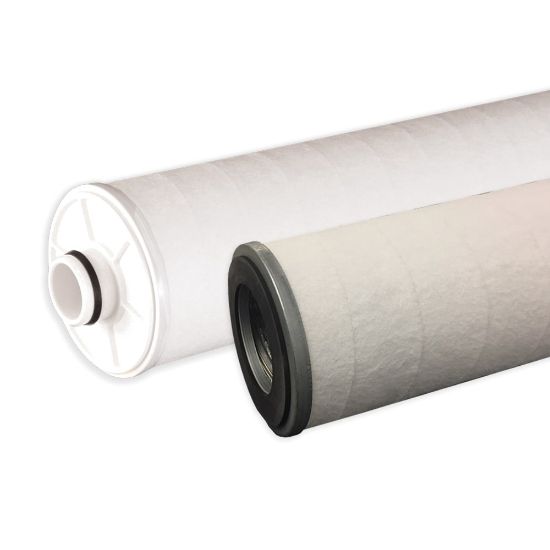

Parker 00-032203 - GOLDXTREAM® PHD & P600D Liquid Filter Cartridge

GOLDXtream® PHD & P600D filter cartridges utilize PEACH GOLD depth technology to remove contaminants from fluids. The P600D is an open-end design. The PHD is a closed top cap with an open bottom cap and 226 size seal for replacement to 3M/Cuno 740.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 00-032203

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	PECO	Division	Industrial Process Filtration Division
Technology	Filtration	Application	Liquid Particulate Filtration
Product Type	Filter Cartridge	Flow Direction	Outside-to-inside
Division	Industrial Process Filtration Division	Filter Construction	PEACH Depth
Changeout Pressure Differential	35 psid	Model Number	ELMT P600D-650-M1- 05LE
Core Material	Tin-Plated Steel	pH Range	2-14
Model Number	ELMT P600D-650-M1- 05LE	Micron Rating	5
Seal Material	EPDM	Product Series	P600D
Filter Material	Polypropylene	Cartridge Length	50"
End Cap Material	Tin-Plated Steel	Quantity per Box	4
End Cap Configuration	DOE - Double Open End	Nominal Inside Diameter	3.5"
Nominal Outside Diameter	6"	Maximum Operating Temperature	180 F
Maximum Pressure Differential	75 PSID	Industry	Oil and Gas and Industrial
