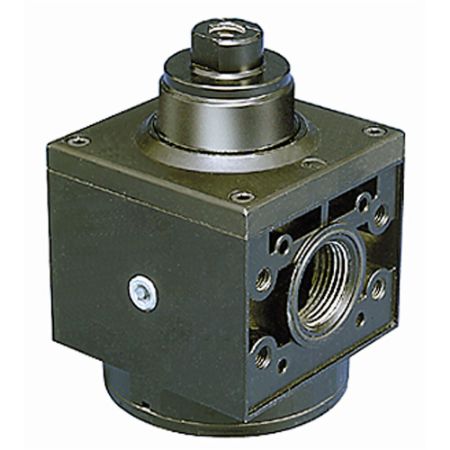

P3N FRL Regulators (Standard/Pilot/Proportional)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
P3NR Pilot Controlled and High-Flow Regulators provide accurate pressure regulation and quick response times. P3NR regulators are generally used in a wide variety of applications where reduced pressure is highly desirable for energy conservation, safety requirements, air circuit control and air instrumentation.
The P3NR offers port blocks which provide 1-1/2" port extension to 1" ported bodies and a solid control piston for extended life. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. With various options available, P3NR can be easily configured for your application. The P3NR can be mounted using a semi-modular bolt connection to other P3N global air preparation products.Markets
• Machine Tools
• Misc. Industrial
• Misc. Manufacturing
• Air and Gas
• Appliances
• Factory Automation
• Entertainment Automation
• Molding
• Packaging Machinery
• Printing and Marking Equipment
• Vehicle Assembly Facilities
• Wearing Apparel
• Food and Beverage
• Misc. Processing
Features/Benefits
• Robust but lightweight aluminum construction
• Secondary aspiration plus rolling diaphragm provides quick response and accurate pressure regulation
• Optional tamperproof regulator padlock
• Reverse flow / relieving option
• Ideal for applications where space constrictions are present
Applications
• To be used in combination with valves and cylinders
• At the transfer point from workshop to machine
• On mobile applications or stationary assemblies
• In combination with tools for assembly
• For general industrial applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Port Size | Pressure Regulator Type | Division | Product Type | Gauge Port Size | Pressure Gauge Type | Outlet Pressure Rating | Operation Type | Pressure Regulator Type | Outlet Pressure Rating | Pressure Gauge Type | Operation Type | Port Size | Product Type | Gauge Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P3NRA16BNG | Quote Required | $347.74 | EA | 3/4" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | Gauge | 125.0 psig | Standard | Relieving | 125 PSI | Gauge | Standard | 3/4" | Standard Pressure Regulator | 1/4" | ||
| P3NRA16BNH | Quote Required | TBD | 3/4" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | None | 250.0 psig | Standard | Relieving | 250 PSI | None | Standard | 3/4" | Standard Pressure Regulator | 1/4" | |||
| P3NRA16BNJ | Quote Required | $353.28 | EA | 3/4" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | Gauge | 250.0 psig | Standard | Relieving | 250 PSI | Gauge | Standard | 3/4" | Standard Pressure Regulator | 1/4" | ||
| P3NRA16BNN | Quote Required | $387.07 | EA | 3/4" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | None | 125.0 psig | Standard | Relieving | 125 PSI | None | Standard | 3/4" | Standard Pressure Regulator | 1/4" | ||
| P3NRA16BPP | Quote Required | $509.50 | EA | 3/4" | Relieving | Pneumatic Division | Pilot Operated Regulator | 1/4" | None | 250.0 psig | Pilot | Relieving | 250 PSI | None | Pilot | 3/4" | Pilot Operated Regulator | 1/4" | ||
| P3NRA18BNG | Quote Required | $347.74 | EA | 1" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | Gauge | 125.0 psig | Standard | Relieving | 125 PSI | Gauge | Standard | 1" | Standard Pressure Regulator | 1/4" | ||
| P3NRA18BNH | Quote Required | TBD | 1" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | None | 250.0 psig | Standard | Relieving | 250 PSI | None | Standard | 1" | Standard Pressure Regulator | 1/4" | |||
| P3NRA18BNJ | Quote Required | $353.28 | EA | 1" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | Gauge | 250.0 psig | Standard | Relieving | 250 PSI | Gauge | Standard | 1" | Standard Pressure Regulator | 1/4" | ||
| P3NRA18BNN | Quote Required | $387.07 | EA | 1" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | None | 125.0 psig | Standard | Relieving | 125 PSI | None | Standard | 1" | Standard Pressure Regulator | 1/4" | ||
| P3NRA18BPP | Quote Required | $509.50 | EA | 1" | Relieving | Pneumatic Division | Pilot Operated Regulator | 1/4" | None | 250.0 psig | Pilot | Relieving | 250 PSI | None | Pilot | 1" | Pilot Operated Regulator | 1/4" | ||
| P3NRA1PBNG | Quote Required | $498.79 | EA | 1-1/2" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | Gauge | 125.0 psig | Standard | Relieving | 125 PSI | Gauge | Standard | 1-1/2" | Standard Pressure Regulator | 1/4" | ||
| P3NRA1PBNN | Quote Required | $471.48 | EA | 1-1/2" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | None | 125.0 psig | Standard | Relieving | 125 PSI | None | Standard | 1-1/2" | Standard Pressure Regulator | 1/4" | ||
| P3NRA1PBPP | Quote Required | $580.34 | EA | 1-1/2" | Relieving | Pneumatic Division | Pilot Operated Regulator | 1/4" | None | 250.0 psig | Pilot | Relieving | 250 PSI | None | Pilot | 1-1/2" | Pilot Operated Regulator | 1/4" | ||
| P3NRA96BNG | Quote Required | $414.39 | EA | 3/4 | Relieving | Pneumatic Division | Standard | 1/4 | Gauge | 125 | Standard | Relieving | 125 PSI | Gauge | Standard | 3/4" | Standard | 1/4" | ||
| P3NRA96BNH | Quote Required | 4 In Stock | $394.49 | EA | 3/4 | Relieving | Pneumatic Division | Standard | 1/4 | None | 250 | Standard | Relieving | 250 PSI | None | Standard | 3/4" | Standard | 1/4" | |
| P3NRA96BNJ | Quote Required | TBD | 3/4 | Relieving | Pneumatic Division | Standard | 1/4 | Gauge | 250 | Standard | Relieving | 250 PSI | Gauge | Standard | 3/4" | Standard | 1/4" | |||
| P3NRA96BNN | 4 In Stock | 3 In Stock | $387.07 | EA | Pneumatic Division | Relieving | 125 PSI | Gauge | Standard | 3/4" | Standard Pressure Regulator | 1/4" | ||||||||
| P3NRA96BPP | Quote Required | $607.14 | EA | 3/4 | Relieving | Pneumatic Division | Standard | 1/4 | None | 250 | Pilot | Relieving | 250 PSI | None | Standard | 3/4" | Standard | 1/4" | ||
| P3NRA98BNG | Quote Required | 12 In Stock | $414.39 | EA | 1 | Relieving | Pneumatic Division | Standard | 1/4 | Gauge | 125 | Standard | Relieving | 125 PSI | None | Pilot | 1" | Standard | 1/4" | |
| P3NRA98BNH | Quote Required | 3 In Stock | $394.49 | EA | 1" | Relieving | Pneumatic Division | Standard Pressure Regulator | 1/4" | None | 250.0 psig | Standard | Relieving | 250 PSI | Gauge | Standard | 1" | Standard Pressure Regulator | 1/4" |
