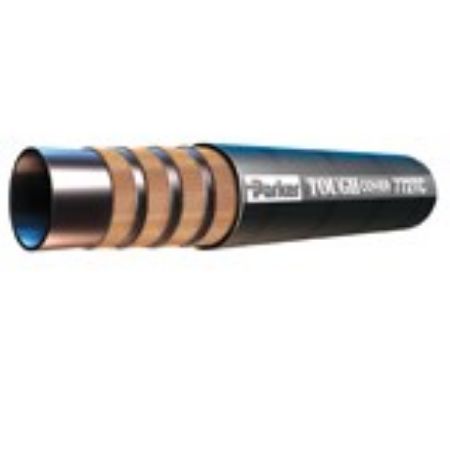

OBSOLETE: Hydraulic Industry Standard Hose 2500-4000 PSI – 772 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 772 hose is a hydraulic industry standard hose that has a pressure range of 2500-4000 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility. The 772 hose is designed, built, and tested to meet SAE 100R12 performance specifications. Sizes range from 3/8” to 2” in diameter with different cover options available for various markets.Markets:• Transportation• Military• Construction• Grounds & Building Maintenance• Forestry• Utility Equipment• Machine Tool• Oil Field Service• Waste & Refuse• IndustrialFeatures/Benefits: • ToughCover or SuperTough cover options to prevent abrasion• SAE 100R12 certification• 2500-4000 PSI working pressure in different sizesApplications:• Petroleum base hydraulic fluids and lubricating oilsCompatible Fittings:• 71 series fittings
Read More...| Action | Part No. | Availability | Partner Available | Price | Inside Diameter | Outside Diameter | Maximum Operating Pressure | Weight | Division | Maximum Operating Temperature | Hose Inner Tube Material | Media | Compatible Fitting | Hose Reinforcement Material | Cover Material | Nominal Hose Inside Diameter | Specifications Met | Minimum Bend Radius | Minimum Operating Temperature | Application | Hose I.D. (size) | Hose Cover Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 772TC-10 | Quote Required | TBD | 5/8 | 1.080 | 4000 | 0.74 | Hose Products Division | 257 | Synthetic Rubber | Lubricants | 71 Series | 4 Spirals of Steel Wire | Synthetic Rubber Abrasion Resistant | 16 | ABS | 200 | -40 | Lubricating Oils | -10 | ToughCover | ||
| 772TC-12 | Quote Required | TBD | 3/4 | 1.210 | 4000 | 0.94 | Hose Products Division | 257 | Synthetic Rubber | Lubricants | 71 Series | 4 Spirals of Steel Wire | Synthetic Rubber Abrasion Resistant | 19 | ABS | 240 | -40 | Lubricating Oils | -12 | ToughCover | ||
| 772TC-16 | Quote Required | TBD | 1 | 1.5 | 4000 | 1.99 | Hose Products Division | 257 | Synthetic Rubber | Lubricants | 71 Series | 4 Spirals of Steel Wire | Synthetic Rubber Abrasion Resistant | 25 | ABS | 300 | -40 | Lubricating Oils | -16 | ToughCover | ||
| 772TC-20 | Quote Required | TBD | 1-1/4 | 1.840 | 3000 | 1.74 | Hose Products Division | 257 | Synthetic Rubber | Lubricants | 71 Series | 4 Spirals of Steel Wire | Synthetic Rubber Abrasion Resistant | 31 | ABS | 420 | -40 | Lubricating Oils | -20 | ToughCover | ||
| 772TC-24 | Quote Required | TBD | 1-1/2 | 2.070 | 2500 | 2.99 | Hose Products Division | 257 | Synthetic Rubber | Lubricants | 71 Series | 4 Spirals of Steel Wire | Synthetic Rubber Abrasion Resistant | 38 | ABS | 500 | -40 | Lubricating Oils | -24 | ToughCover | ||
| 772TC-32 | Quote Required | TBD | 2 | 2.590 | 2500 | 2.75 | Hose Products Division | 257 | Synthetic Rubber | Lubricants | 71 Series | 4 Spirals of Steel Wire | Synthetic Rubber Abrasion Resistant | 51 | ABS | 630 | -40 | Lubricating Oils | -32 | ToughCover | ||
| 772TC-6 | Quote Required | TBD | 3/8 | 0.790 | 4000 | 0.60 | Hose Products Division | 257 | Synthetic Rubber | Lubricants | 71 Series | 4 Spirals of Steel Wire | Synthetic Rubber Abrasion Resistant | 10 | ABS | 125 | -40 | Lubricating Oils | -6 | ToughCover | ||
| 772TC-8 | Quote Required | 65 In Stock | $11.06/each | 12.5 mm | 0.940 inch | 4000 psi | 0.93 kg/m | Hose Products Division | 125 °C | Synthetic Rubber | Lubricants | 71 Series | 4 Spirals of Steel Wire | Synthetic Rubber Abrasion Resistant | 12 mm | SAE J1942 | 7 inch | -40 °C | Petroleum Base Hydraulic Fluids | -8 | ToughCover |
