OBSOLETE: Hydraulic Constant Working Pressure Hose 3000 PSI – 711 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

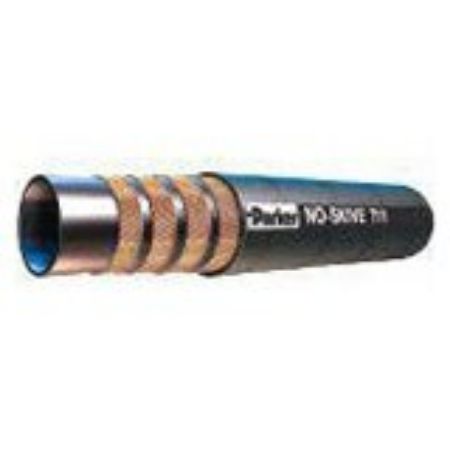

Parker's 711 hose was designed to deliver consistency and reliability with a constant working pressure of 3000 PSI in all sizes. The 711 hose is a medium pressure, four wire spiral constructed hose designed for high-impulse, long life applications like injection molding. The 711 hose meets SAE J1942 specifications. The 711 hose has a no-skive design to make crimping much easier. It is available in a 1-1/2” to 2” diameter to fit the requirements of various markets

Markets:

• Military

• Utility Equipment

• Industrial

Features/Benefits:

• No-Skive design eliminates the need to remove the hose cover before crimping

• MSHA accepted cover

• 3,000 PSI constant working pressure in all sizes

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 71 series fittings

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	Hose Inner Tube Material	Media	Compatible Fitting	Cover Material	Specifications Met	Minimum Bend Radius	Hose Reinforcement Material	Nominal Hose Inside Diameter	Minimum Operating Temperature	Application	Outside Diameter	Weight	Maximum Operating Pressure	Maximum Operating Temperature	Division	Inside Diameter	Hose I.D. (size)
	711-24	18 In Stock	Quote Required	$38.32/each	Synthetic Rubber	Lubricants	71 Series	Synthetic Rubber	n/a	22	4 Spirals of Steel Wire	38	-40	Lubricating Oils	2.070	2.01	3000	212	Hose Products Division	1-1/2	-24
	711-32	Quote Required	11 In Stock	$65.79/each	Synthetic Rubber	Lubricants	71 Series	Synthetic Rubber	n/a	28	4 Spirals of Steel Wire	51	-40	Lubricating Oils	2.590	2.75	3000	212	Hose Products Division	2	-32
