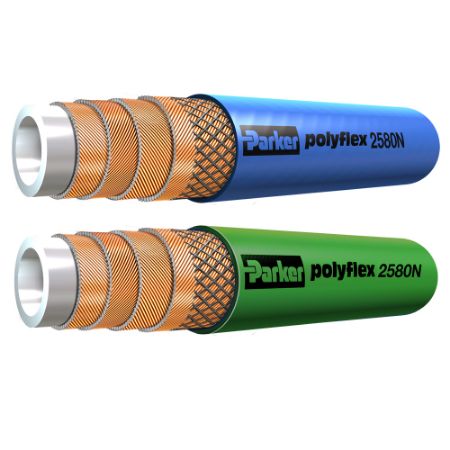

OBSOLETE: High Pressure Water Jetting Hose - 2580N
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker 2580N High Pressure Water Jetting Hoses are compact (up to 20% smaller than competitor hoses), promote easy handling for operators, and handle pressures up to 23,000 psi. They are used in high pressure water jetting and industrial cleaning applications, construction, hydrodemolition and shipbuilding. They are ideal for removing different kinds of dirt accumulation, or materials, from various surfaces in tanks and from concrete, asphalt, etc.
Markets:
• Shipbuilding
• Construction
• Hydrodemolition
• Industrial Cleaning
• All markets requiring pressures over 17,000 psi for their cleaning applications
Features/Benefits:
• Compact design (20% smaller than comparable hoses) promotes easy handling and space improvements
• Compliant with DIN EN 1829-2
Applications:
• Tank cleaning
• Surface cleaning on ships
• Water jetting equipment
• Waterblast equipment
• Industrial cleaning with working pressure up to 23,000 psi (1600 bar)
Read More...Markets:
• Shipbuilding
• Construction
• Hydrodemolition
• Industrial Cleaning
• All markets requiring pressures over 17,000 psi for their cleaning applications
Features/Benefits:
• Compact design (20% smaller than comparable hoses) promotes easy handling and space improvements
• Compliant with DIN EN 1829-2
Applications:
• Tank cleaning
• Surface cleaning on ships
• Water jetting equipment
• Waterblast equipment
• Industrial cleaning with working pressure up to 23,000 psi (1600 bar)
| Action | Part No. | Availability | Partner Available | Price | Division | Minimum Operating Temperature | Media | Hose Inner Tube Material | Maximum Operating Temperature | Cover Material | Inside Diameter | Design Factor | Specifications Met | Minimum Bend Radius | Application | Weight | Outside Diameter | Compatible Fitting | Maximum Operating Pressure | Hose Reinforcement Material | Hose I.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2580N-06V12 | Quote Required | TBD | Parflex Division | 14 °F | Water | Polyamide (PA) | 70 °C | Polyamide (PA) | 9.5 mm | 2.5:1 | DIN 1829-2 | 3-3/4 inch | Waterblasting | 0.63 lb/ft | 21.6 mm | BL Series | 1600 bar | 4 Spirals and 2 Open Layers of High Tensile Steel Wire | 3/8 | ||
| 2580N-08V12 | Quote Required | TBD | Parflex Division | 14 °F | Water | Polyamide (PA) | 158 °F | Polyamide (PA) | 12.7 mm | 2.5:1 | DIN 1829-2 | 150 mm | Waterblasting | 1.80 kg/m | 25.2 mm | BL Series | 20300 psi | 4 Spirals and 2 Open Layers of High Tensile Steel Wire | 1/2 | ||
| 2580N-12V13 | Quote Required | TBD | Parflex Division | 14 | Chemicals | Polyamide (PA) | 158 | Polyamide (PA) | 3/4 | 2.5:1 | DIN 1829-2 | 6-3/4 | Shipbuilding | 1.18 | 1.290 | BL Series | 17400 | 4 Spirals and 2 Open Layers of High Tensile Steel Wire | 3/4 |
