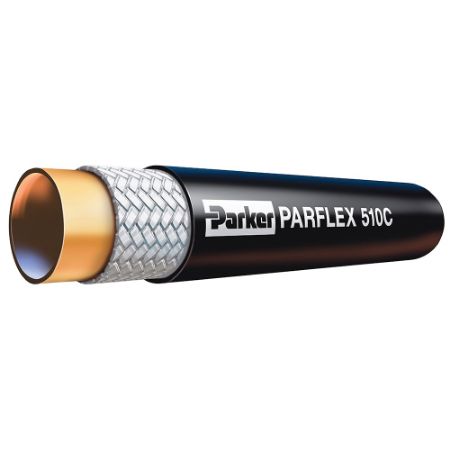

OBSOLETE: Flexible Hose - 510C

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s 510C flexible hose features good flexibility and abrasion resistance, delivering smooth installation and added protection for general hydraulic applications with medium pressure requirements. Parflex mobile hoses have inherently clean core tubes and long-length availability that assist in high quantity assembly. The 510C hydraulic hose, offers sufficient noise dampening in power steering systems. This added value has been recognized among operators on turf maintenance equipment that complained of a pulse in the steering column. Also, the volumetric expansion rate of Parflex 510C hose naturally damped the pressure surge, eliminating the pulse in the steering column.

With good abrasion resistance, flexibility, and long length capabilities, the Parflex 510C is the optimal solution for hydraulic applications that require medium pressure service. Review the literature listed under the Product Support tab for further information.

Markets:

• Construction

• Fluid Handling

• Mobile Equipment

• Industrial Hydraulics

• Machine Tool

Features/Benefits:

• Good abrasion resistance for added protection

• Extreme flexibility for simplified routing and installation

• Low coefficient of friction cover

Applications:

• Medium pressure service for both field attachable and permanent fittings

• Turf care equipment

• Machine tool

Certifications/Compliance:

• Meets/Exceeds SAE 100R7 except -2

• MSHA Accepted except -4

Technical Specifications:

• Tube: Copolyester

• Reinforcement: Fiber

• Cover: Polyurethane

• 3/16” and 1/4” working pressure reduced to 3,000 and 2,750 psi respectively when using field attachable couplings

• Hose I.D. is nominal

• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Minimum Operating Temperature	Application	Specifications Met	Minimum Bend Radius	Weight	Maximum Operating Pressure	Outside Diameter	Inside Diameter	Division	Maximum Operating Temperature	Media	Compatible Fitting	Hose I.D. (inch)	Hose Style	Disclaimer
510C-12	Quote Required	Quote Required	TBD	-40	General Purpose	MSHA	5	0.21	1250	1.090	19	Parflex Division	212	Air	56 Series	3/4	Single
510C-16	Quote Required	Quote Required	TBD	-40 °F	Machine Tools	SAE 100R7	203 mm	0.40 kg/m	1000 psi	1.320 inch	25 mm	Parflex Division	100 °C	Water	56 Series	1	Single	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
510C-3	Quote Required	716 In Stock	$4.69/each	-40	General Purpose	MSHA	3/4	0.05	3250	0.430	5	Parflex Division	212	Air	56 Series	3/16	Single	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
510C-4	57 In Stock	269 In Stock	$3.70/each	-40 °F	Pneumatics	SAE 100R7	38 mm	0.08 kg/m	20.7 MPa	0.470 inch	6 mm	Parflex Division	100 °C	Air	56 Series	1/4	Single	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
510C-4-4	101 In Stock	70 In Stock	$9.54/each	-40 °C	Mobile Hydraulic Equipment	SAE 100R7	1-1/2 inch	0.10 lb/ft	20.7 MPa	0.940 inch	6 mm	Parflex Division	212 °F	Petroleum Hydraulic Fluids	56 Series	1/4	Twin-line
510C-5	505 In Stock	156 In Stock	$4.62/each	-40	General Purpose	MSHA	1-3/4	0.08	2500	0.570	8	Parflex Division	212	Air	56 Series	5/16	Single	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
510C-6	260 In Stock	781 In Stock	$4.01/each	-40 °F	Machine Tools	SAE 100R7	51 mm	0.14 kg/m	15.5 MPa	16.3 mm	10 mm	Parflex Division	100 °C	Water	51 Series	3/8	Single	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
510C-8	40 In Stock	593 In Stock	$6.16/each	-40 °F	Mobile Hydraulic Equipment	SAE 100R7	3 inch	0.22 kg/m	15.5 MPa	0.810 inch	13 mm	Parflex Division	212 °F	Water	56 Series	1/2	Single	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
510C-8-8	20 In Stock	36 In Stock	$15.91/each	-40 °C	Hydraulics	SAE 100R7	76 mm	0.30 lb/ft	15.5 MPa	1.62 mm	13 mm	Parflex Division	100 °C	Petroleum Hydraulic Fluids	56 Series	1/2	Twin-line
