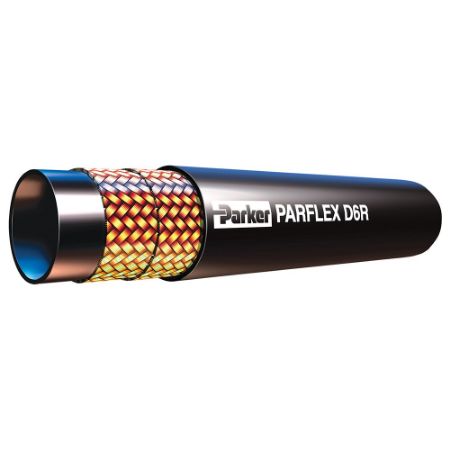

OBSOLETE - 100R17 Hose - D6R/D6RX
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s DR6 Hybrid® Hose delivers increased oil, ozone and impulse resistance, less force to flex, a tighter bend radius and improved chemical compatibility. The D6R hose is lightweight (up to 40% lighter than comparable rubber hoses), compact and durable, making it a great solution for utility equipment, material handling, construction and other industrial and mobile applications. Its thermoplastic core tube provides the cleanest fluid conveyance in the market. D6RX is available in long, continuous lengths (up to 500 feet).
Markets:
• Mobile Equipment
• Industrial
• Material Handling
• Transportation
• Construction
Features/Benefits:
• D6R hose is designed to meet the demanding requirements of mobile and industrial hydraulic applications
• Up to 40% lighter than comparable rubber hoses
• Wide range of fluid compatibility to accommodate diverse applications
• Compact hose construction for ease of installation and routing
• Bend radius is less than half of conventional SAE 100R1AT & 100R2 hoses
• Low force to flex
• 3,000 psi constant working pressure
Applications:
• Medium pressure hydraulic applications
• Agricultural Equipment
• Construction Equipment
• Lubricating Oils
Certifications/Compliance:
• Exceeds SAE 100R17
• MSHA Compliant Cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Mobile Equipment
• Industrial
• Material Handling
• Transportation
• Construction
Features/Benefits:
• D6R hose is designed to meet the demanding requirements of mobile and industrial hydraulic applications
• Up to 40% lighter than comparable rubber hoses
• Wide range of fluid compatibility to accommodate diverse applications
• Compact hose construction for ease of installation and routing
• Bend radius is less than half of conventional SAE 100R1AT & 100R2 hoses
• Low force to flex
• 3,000 psi constant working pressure
Applications:
• Medium pressure hydraulic applications
• Agricultural Equipment
• Construction Equipment
• Lubricating Oils
Certifications/Compliance:
• Exceeds SAE 100R17
• MSHA Compliant Cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Media | Specifications Met | Application | Hose Inner Tube Material | Hose Reinforcement Material | Cover Material | Division | Minimum Bend Radius | Maximum Operating Pressure | Outside Diameter | Design Factor | Size | Maximum Operating Temperature | Inside Diameter | Weight | Minimum Operating Temperature | Compatible Fitting | Cover Structure | Product Type | Hose I.D. (inch) | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D6R04-500 | Quote Required | 796 In Stock | $4.18 | FT | Petroleum Hydraulic Fluids | MSHA | Industrial Machinery | Copolyester | 1 Braid of High Tensile Steel Wire | Synthetic Rubber | Parflex Division | 1-1/2 inch | 3045 psi | 0.460 inch | 4 | -4 | 121 °C | 1/4 inch | 0.10 lb/ft | -40 °C | 56 Series | Smooth | Hydraulic Hose | 1/4 | ||
| D6R05-500 | Quote Required | TBD | Lubricants | MSHA | Agriculture Equipment | Copolyester | 1 Braid of High Tensile Steel Wire | Synthetic Rubber | Parflex Division | 44.5 | 3045 | 13.2 | 4 | -5 | 250 | 5/16 | 0.12 | -40 | 56 Series | Smooth | Hydraulic Hose | 5/16 | ||||
| D6R06-500 | Quote Required | TBD | Lubricants | SAE 100R17 | Material Handling | Copolyester | 1 Braid of High Tensile Steel Wire | Synthetic Rubber | Parflex Division | 50.8 mm | 210 bar | 0.610 inch | 4 | -6 | 250 °F | 10 mm | 0.25 kg/m | -40 °C | 56 Series | Smooth | Hydraulic Hose | 3/8 | ||||
| D6R08-500 | Quote Required | TBD | Petroleum Hydraulic Fluids | SAE 100R17 | Material Handling | Copolyester | 1 Braid of High Tensile Steel Wire | Synthetic Rubber | Parflex Division | 3 inch | 210 bar | 19.9 mm | 4 | -8 | 121 °C | 1/2 inch | 0.38 kg/m | -40 °F | 56 Series | Smooth | Hydraulic Hose | 1/2 | ||||
| D6R10 | Quote Required | TBD | Lubricants | MSHA | Construction Equipment | Copolyester | 2 Braids of High Tensile Wire | Synthetic Rubber | Parflex Division | 3-1/2 | 3045 | 24.7 | 4:1 | -10 | 250 | 5/8 | 0.43 | -40 | 56 Series | Smooth | Hydraulic Hose | 5/8 | ||||
| D6R12 | Quote Required | TBD | Lubricants | MSHA | Construction Equipment | Copolyester | 1 Braid of High Tensile Steel Wire | Synthetic Rubber | Parflex Division | 4-1/4 | 3045 | 1.140 | 4:1 | -12 | 250 | 3/4 | 0.71 | -40 | 56 Series | Smooth | Hydraulic Hose | 3/4 | ||||
| D6R16 | Quote Required | TBD | Lubricants | MSHA | Construction Equipment | Copolyester | 2 Braids of High Tensile Wire | Synthetic Rubber | Parflex Division | 6 | 3045 | 1.450 | 4:1 | -16 | 250 | 1 | 0.91 | -40 | 56 Series | Smooth | Hydraulic Hose | 1 | ||||
| D6RX-04 | Quote Required | TBD | Lubricants | MSHA | Construction Equipment | Copolyester | 1 Braid of High Tensile Steel Wire | Synthetic Rubber | Parflex Division | 1-1/2 | 3045 | 0.460 | 4:1 | -4 | 250 | 1/4 | 0.10 | -40 | 56 Series | Smooth | Hydraulic Hose | 1/4 | Continuous Reel | |||
| D6RX-06 | Quote Required | TBD | Lubricants | MSHA | Construction Equipment | Copolyester | 1 Braid of High Tensile Steel Wire | Synthetic Rubber | Parflex Division | 2 | 3045 | 0.610 | 4:1 | -6 | 250 | 3/8 | 0.17 | -40 | 56 Series | Smooth | Hydraulic Hose | 3/8 | Continuous Reel | |||
| D6RX-08 | Quote Required | TBD | Lubricants | MSHA | Industrial Machinery | Copolyester | 2 Braids of High Tensile Wire | Synthetic Rubber | Parflex Division | 76.2 mm | 21 MPa | 0.780 inch | 4:1 | -8 | 121 °C | 1/2 inch | 0.38 kg/m | -40 °C | 56 Series | Smooth | Hydraulic Hose | 1/2 | Continuous Reel |
