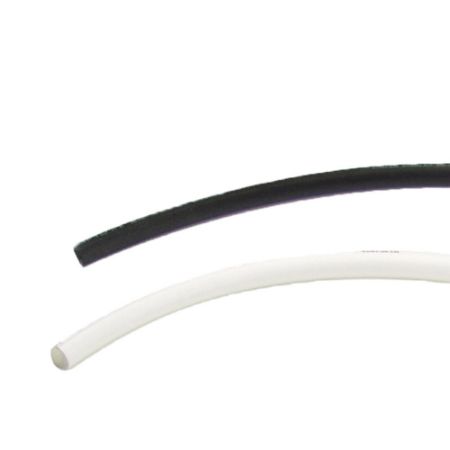

Nylon Tubing - NR Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

NR Series High Strength Semi-Rigid Nylon Tubing features a high tensile strength and excellent coupling retention in high pressure, temperature and vibration environments. Sometimes this tubing is referred to as “hard nylon tubing” because it stiffer than standard nylon tubing. It is manufactured from high grade nylon resin. Tubing resists high ambient temperatures making it suitable for applications that involve high-pressure pneumatics and oils, in lubrication systems, for marine control systems and in process lines for chemicals.

Markets:
• Industrial
• Marine
• Fluid Handling
< br/>Features/Benefits:
• High grade nylon resins without the addition of plasticizers for higher pressure tubing applications
• Better chemical resistance than Series N, good resistance to high ambient temperature and low moisture absorption for superior performance
• High tensile strength and excellent coupling retention in high pressure, temperature and vibration environments

Applications:
• High-pressure pneumatics and oils
• Lubrication systems
• Marine control systems
• Process lines for chemicals
• For tube support, use reference Catalog 4660 Tubing/Fitting Compatibility Chart

Technical Specifications:
• Working and burst pressures rated at 73°F (23°C)
• The wall thickness is for reference only
• Packaged on 100 ft reel - contact Customer Service for more package quantities

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	UOM	Minimum Operating Temperature	Tube Outside Diameter	Tube Material	Compatible Fitting	Media	Maximum Operating Temperature	Specifications Met	Tube Inside Diameter	Maximum Operating Pressure	Length per Package	Minimum Bend Radius	Division	Minimum Burst Pressure	Application	Size	Weight	Cover Material	Cover Color	Order Size	Standard Pack Qty (ft)	Color	Wall Thickness	Outer Diameter 1	Pkg Qty	Max Pressure	Color	Material	Pkg Qty/UOM	Inner Diameter	Inner Diameter Inch/mm	Series	Outer Diameter Inch/mm	Outer Diameter	Trade Name	Parker Group	Inner Diameter	Parker Division	Inch/Metric	Application	Distinct Properties	Wall Thickness Inch/mm	Max Pressure Range	Wall Thickness	Material	Color
NBR-2-017	Quote Required	Quote Required	TBD			-60 °F	3.2 mm	Polyamide (PA)	Compress-Align®	Air	200 °F	N/A	0.091 inch	425 psi	500 ft	0.50 inch	Parflex Division	1700 psi	Lubrication	-2	0.004 kg/m	n/a	n/a	1/8	500	Black
NBR-2-026	Quote Required	1607 In Stock	$0.68	FT		-60 °F	1/8 inch	Polyamide (PA)	Compress-Align®	Water	93 °C	N/A	0.073 inch	625 psi	34.8 m	0.38 inch	Parflex Division	2500 psi	Marine	-2	0.006 kg/m	n/a	n/a	1/8	500	Black
NBR-3-024	Quote Required	Quote Required	TBD			-60 °F	3/16 inch	Polyamide (PA)	Compress-Align®	Hydraulic Fluids	200 °F	N/A	0.140 inch	29.3 bar	34.8 m	19 mm	Parflex Division	1700 psi	Lubrication	-3	0.009 kg/m	n/a	n/a	3/16	500	Black
NBR-3-039	Quote Required	Quote Required	$0.80	FT		-51 °C	3/16 inch	Polyamide (PA)	Compress-Align®	Hydraulic Fluids	200 °F	N/A	2.8 mm	625 psi	500 ft	0.63 inch	Parflex Division	2500 psi	Marine	-3	0.012 kg/m	n/a	n/a	3/16	500	Black
NBR-4-035	Quote Required	2875 In Stock	$1.04	FT		-60 °F	6.4 mm	Polyamide (PA)	Compress-Align®	Lubricants	93 °C	N/A	0.180 inch	29.3 bar	250 ft	25.4 mm	Parflex Division	1700 psi	Lubrication	-4	0.016 kg/m	n/a	n/a	1/4	250	Black
NBR-4-050	Quote Required	7065 In Stock	$1.33	FT		-60 °F	1/4 inch	Polyamide (PA)	Compress-Align®	Hydraulic Fluids	93 °C	N/A	3.9 mm	43.1 bar	76.2 m	22.3 mm	Parflex Division	2500 psi	Pneumatics	-4	0.021 kg/m	n/a	n/a	1/4	250	Black
NBR-5-040	178 In Stock	510 In Stock	$1.49	FT		-60 °F	5/16 inch	Polyamide (PA)	Hi-Duty	Water	93 °C	N/A	5.9 mm	29.3 bar	250 ft	38.1 mm	Parflex Division	1700 psi	Marine	-5	0.015 lb/ft	n/a	n/a	5/16	250	Black
NBR-6-048	Quote Required	778 In Stock	$2.00	FT		-60 °F	3/8 inch	Polyamide (PA)	Flow Controls	Fuels (Oil)	93 °C	N/A	7.1 mm	29.3 bar	76.2 m	1.75 inch	Parflex Division	117.2 bar	Fluid Transfer	-6	0.033 kg/m	n/a	n/a	3/8	250	Black
NBR-6-075	Quote Required	Quote Required	TBD			-60 °F	9.5 mm	Polyamide (PA)	Flow Controls	Air	200 °F	N/A	0.225 inch	625 psi	76.2 m	38.1 mm	Parflex Division	2500 psi	Marine	-6	0.032 lb/ft	n/a	n/a	3/8	250	Black
NBR-8-062	Quote Required	Quote Required	$3.26	FT		-60 °F	1/2 inch	Polyamide (PA)	Compress-Align®	Water	93 °C	N/A	0.375 inch	26 bar	76.2 m	60.5 mm	Parflex Division	1400 psi	Lubrication	-8	0.038 lb/ft	n/a	n/a	1/2	250	Black
NBR-8-075	Quote Required	Quote Required	TBD			-60 °F	12.7 mm	Polyamide (PA)	Compress-Align®	Hydraulic Fluids	93 °C	N/A	8.9 mm	43.1 bar	76.2 m	2.50 inch	Parflex Division	172.4 bar	Marine	-8	0.067 kg/m	n/a	n/a	1/2	250	Black
NNR-2-017	Quote Required	Quote Required	$0.49	FT	FT	-60 °F	1/8 inch	Polyamide (PA)	Compression	Water	93 °C	N/A	0.091 inch	29.3 bar	34.8 m	0.50 inch	Parflex Division	1700 psi	Pneumatics	-2	0.003 lb/ft	n/a	n/a	1/8	500	Natural	0.017 Inch	1/8 Inch	500	425 PSI (30 bar)	Natural	Nylon	500 FT	0.091 Inch	Inch	N	Inch	1/8 Inch	Parflex	Fluid Connector	0.091 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	250 to 499 PSI (17 to 34 bar)	0.017 Inch	Nylon	Natural
NNR-2-026	Quote Required	3941 In Stock	$0.68	FT	FT	-51 °C	3.2 mm	Polyamide (PA)	Fast & Tite®	Lubricants	93 °C	N/A	0.073 inch	625 psi	34.8 m	0.38 inch	Parflex Division	2500 psi	Marine	-2	0.004 lb/ft	n/a	n/a	1/8	500	Natural	0.026 Inch	1/8 Inch	500	625 PSI (40 bar)	Natural	Nylon	500 FT	0.073 Inch	Inch	N	Inch	1/8 Inch	Parflex	Fluid Connector	0.073 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	500 to 999 PSI (34 to 69 bar	0.026 Inch	Nylon	Natural
NNR-3-024	Quote Required	Quote Required	TBD		FT	-60 °F	3/16 inch	Polyamide (PA)	Fast & Tite®	Hydraulic Fluids	200 °F	N/A	0.140 inch	29.3 bar	500 ft	0.75 inch	Parflex Division	1700 psi	Lubrication	-3	0.009 kg/m	n/a	n/a	3/16	500	Natural	0.024 Inch	3/16 Inch	500	425 PSI (30 bar)	Natural	Nylon	500 FT	0.14 Inch	Inch	N	Inch	3/16 Inch	Parflex	Fluid Connector	0.14 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	250 to 499 PSI (17 to 34 bar)	0.024 Inch	Nylon	Natural
NNR-3-039	24 In Stock	2486 In Stock	$0.80	FT	FT	-60 °F	4.8 mm	Polyamide (PA)	Flow Controls	Fuels (Oil)	200 °F	N/A	0.110 inch	625 psi	500 ft	0.63 inch	Parflex Division	2500 psi	Fluid Transfer	-3	0.012 kg/m	n/a	n/a	3/16	500	Natural	0.039 Inch	3/16 Inch	500	625 PSI (40 bar)	Natural	Nylon	500 FT	0.11 Inch	Inch	N	Inch	3/16 Inch	Parflex	Fluid Connector	0.11 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	500 to 999 PSI (34 to 69 bar	0.039 Inch	Nylon	Natural
NNR-4-035	Quote Required	4007 In Stock	$1.02	FT	FT	-60 °F	1/4 inch	Polyamide (PA)	Fast & Tite®	Air	200 °F	N/A	4.6 mm	425 psi	250 ft	1 inch	Parflex Division	117.2 bar	Pneumatics	-4	0.016 kg/m	n/a	n/a	1/4	250	Natural	0.035 Inch	1/4 Inch	250	425 PSI (30 bar)	Natural	Nylon	250 FT	0.18 Inch	Inch	N	Inch	1/4 Inch	Parflex	Fluid Connector	0.18 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	250 to 499 PSI (17 to 34 bar)	0.035 Inch	Nylon	Natural
NNR-4-050	252 In Stock	8397 In Stock	$1.33	FT	FT	-51 °C	1/4 inch	Polyamide (PA)	Fast & Tite®	Lubricants	200 °F	N/A	3.9 mm	43.1 bar	250 ft	22.3 mm	Parflex Division	172.4 bar	Lubrication	-4	0.021 kg/m	n/a	n/a	1/4	250	Natural	0.05 Inch	1/4 Inch	250	625 PSI (40 bar)	Natural	Nylon	250 FT	0.15 Inch	Inch	N	Inch	1/4 Inch	Parflex	Fluid Connector	0.15 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	500 to 999 PSI (34 to 69 bar	0.05 Inch	Nylon	Natural
NNR-5-040	20 In Stock	597 In Stock	$1.49	FT	FT	-51 °C	5/16 inch	Polyamide (PA)	Hi-Duty	Fuels (Oil)	93 °C	N/A	5.9 mm	29.3 bar	250 ft	1.50 inch	Parflex Division	117.2 bar	Marine	-5	0.022 kg/m	n/a	n/a	5/16	250	Natural	0.04 Inch	5/16 Inch	250	425 PSI (30 bar)	Natural	Nylon	250 FT	0.233 Inch	Inch	N	Inch	5/16 Inch	Parflex	Fluid Connector	0.233 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	250 to 499 PSI (17 to 34 bar)	0.04 Inch	Nylon	Natural
NNR-6-048	Quote Required	547 In Stock	$2.00	FT	FT	-51 °C	9.5 mm	Polyamide (PA)	Prestolok®	Air	93 °C	N/A	0.279 inch	425 psi	250 ft	1.75 inch	Parflex Division	117.2 bar	Pneumatics	-6	0.022 lb/ft	n/a	n/a	3/8	250	Natural	0.048 Inch	3/8 Inch	250	425 PSI (30 bar)	Natural	Nylon	250 FT	0.279 Inch	Inch	N	Inch	3/8 Inch	Parflex	Fluid Connector	0.279 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	250 to 499 PSI (17 to 34 bar)	0.048 Inch	Nylon	Natural
NNR-6-075	Quote Required	2810 In Stock	$3.22	FT	FT	-51 °C	3/8 inch	Polyamide (PA)	Compression	Hydraulic Fluids	93 °C	N/A	5.7 mm	43.1 bar	76.2 m	1.50 inch	Parflex Division	172.4 bar	Pneumatics	-6	0.048 kg/m	n/a	n/a	3/8	250	Natural	0.075 Inch	3/8 Inch	250	625 PSI (40 bar)	Natural	Nylon	250 FT	0.225 Inch	Inch	N	Inch	3/8 Inch	Parflex	Fluid Connector	0.225 Inch	Parflex	Inch	Pneumatic	Chemical Resistant	Inch	500 to 999 PSI (34 to 69 bar	0.075 Inch	Nylon	Natural
