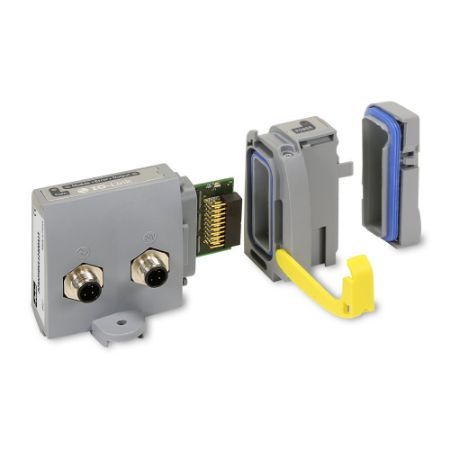

Network Connectivity - P2M IO-Link Network Node

The P2M IO-Link node is a 24 output module, available in both Class A with Independent auxiliarypower supply or a Class B version.

The value of the P2M IO-Link is as a low cost network connection with easy integration and simple to use diagnostics.



Features / Benefits:

• Local diagnostics available through 4 LED's for communication and output status

• Voltage Monitoring and Cycle Counting is available through the network simplifying diagnostic and allowing predictive maintenance

• Class B version has easy single connection to any Class B IO-Link Master using a standard M12 cable

• Class A version has 2 M12 connectors, one for communication from any IO-Link masters and the second to separately receive its auxiliary power supply for valves

• Class A version is available in 3 auxiliary power connection variants to suit different M12 supplier pin outs.

• The Class A or B “-SPC” version is designed for test pulse (OSSD) compatibility and can be supplied from a safe output following machine directives.

• Connection to Moduflex valves – up to 19 piloted solenoids

• Connection to H Micro & H ISO valves – up to 24 piloted solenoids



Markets:

• Packaging

• In-Plant Automotive

• Factory Automation



Application:

• General Pneumatic Control
