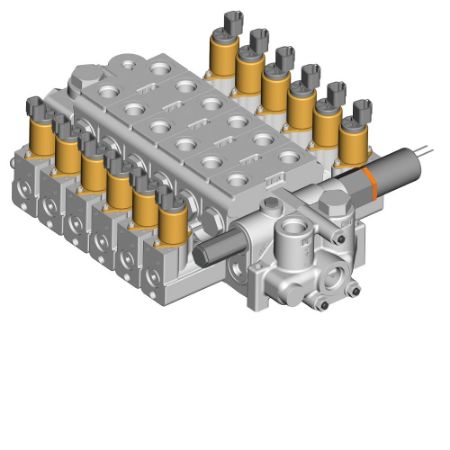

Mobile Directional Control Valve - V20EH Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s V20EH is a sectional, open center, directional control valve for mobile machines that deliver application flexibility, excellent directional control, quick response, and minimal heat generation. With its sectional design, precision metering spools, pilot & differential area reliefs and low pressure drops, makes it ideal for aerial lifts, fork lift trucks and many other tough mobile equipment applications.

Markets:
• Construction Equipment
• Material Handling Equipment
• Mining
• Other Mobile
• Other Natural Resources
• Refuse
• Vocational & Municipal Equipment

Feature/Benefits:
• Dirt tolerant, quick response
• Handle with manual override
• Differential area main relief valves
• Outstanding pressure drop and balance
• The standard maximum work port size is SAE-10 and SAE-12
• A dedicated solenoid drain to the reservoir optimizes solenoid performance
• Minimal impact on open-center pressure drops when the main spools are in neutral
• Work sections rated to 240 Bar (3500 PSI): 4-way, 3-position; and 3-way, 3-position
• A global solenoid (pwm) that can be used for proportional or on/off control. The coils have a molded-on Amp Jr. or Deutsch connector.

Applications:
• Suitable for Various Mobile Applications
