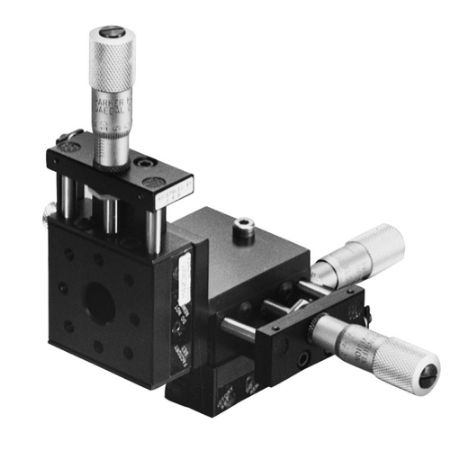

Manual Driven, Ball Bearing Guided, Standard Linear Positioning Stages - 4000 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 4000 Series of precision linear manual stages provide controlled, precise point to-point positioning along a linear axis. Stages are comprised of two basic components: a precision linear ball slide which serves as a linear bearing and guide, and a drive mechanism which accurately moves and positions the slide top along the linear axis.
The 4000 Series stages provide a 1.75 to 5 inch square mounting surface which is ground to a precision micro-flat surface.
Markets:
• Life Science
• Photonics
• Optics
Features/Benefits:
• Travels up to 2.0”
• Payloads up to 123lbs
• Optional aperture
• Single, double, or three axis systems
• English and metric models
• Digital micrometers, manual micrometers, fine screws, and knob driven options
Applications:
• Metrology
• Focusing
• Laser alignment
Read More...The 4000 Series stages provide a 1.75 to 5 inch square mounting surface which is ground to a precision micro-flat surface.
Markets:
• Life Science
• Photonics
• Optics
Features/Benefits:
• Travels up to 2.0”
• Payloads up to 123lbs
• Optional aperture
• Single, double, or three axis systems
• English and metric models
• Digital micrometers, manual micrometers, fine screws, and knob driven options
Applications:
• Metrology
• Focusing
• Laser alignment
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Mounting Option | Bearing Type | Product Series | Maximum Travel | Number of Axes | Load Capacity | Width | Drive Train Type | Product Type | Drive Mechanism | Axis Count | Locking | Travel (mm) | Type | Payload (lbs) | Travel (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4002 | Quote Required | $693.00/each | EA | Electronic Motion and Controls Division | Center Drive | Ball | 4000 Series | 0.5 inch | 1 | 11 kg | 1.75 inch | Imperial Micrometer | Linear Stage | Imperial Micrometer | 1 | No | (imperial) | English Model / Center Drive | 25 | 0.5 | ||
| 4042 | Quote Required | $0.58/each | EA | Electronic Motion and Controls Division | Center Drive | Ball | 4000 Series | 0.5 inch | 3 | 25 lb | 44.5 mm | Imperial Micrometer | Linear Stage | Imperial Micrometer | 3 | No | (imperial) | English Model / Center Drive | 25 | 0.5 | ||
| 4043 | Quote Required | $4.46/each | EA | Electronic Motion and Controls Division | Center Drive | Ball | 4000 Series | (imperial) | 3 | 11 kg | 44.5 mm | Fine Screw | Linear Stage | Fine Screw | 3 | No | (imperial) | English Model / Center Drive | 25 | 0.75 | ||
| 4044 | Quote Required | $1.25/each | EA | Electronic Motion and Controls Division | English Model | Ball | 4000 Series | (imperial) | 3 | 11 kg | 1.75 inch | Imperial Micrometer | Linear Stage | Imperial Micrometer | 3 | No | (imperial) | English Model / Center Drive | 25 | 1 | ||
| 4046 | Quote Required | $0.65/each | EA | Electronic Motion and Controls Division | English Model | Ball | 4000 Series | 1 inch | 3 | 13 kg | 1.75 inch | Imperial Micrometer | Linear Stage | Imperial Micrometer | 3 | No | (imperial) | English Model / Center Drive / with Aperture | 28 | 1 | ||
| 4073 | Quote Required | $1,469.00/each | EA | Electronic Motion and Controls Division | Side Drive | Ball | 4000 Series | (imperial) | 2 | 11 kg | 44.5 mm | Fine Screw | Linear Stage | Fine Screw | 2 | No | (imperial) | English Model / Side Drive | 25 | 0.75 | ||
| 4096 | Quote Required | $3.50/each | EA | Electronic Motion and Controls Division | With Aperture | Ball | 4000 Series | 0.5 inch | 3 | 0 to 149 lb | 1.75 inch | Imperial Micrometer | Linear Stage | Imperial Micrometer | 3 | No | (imperial) | English Model / Side Drive / with Aperture | 25 | 0.5 | ||
| 4202 | Quote Required | $46.00/each | EA | Electronic Motion and Controls Division | Center Drive | Ball | 4000 Series | (imperial) | 1 | 19 kg | 1.75 inch | Imperial Micrometer | Linear Stage | Imperial Micrometer | 1 | No | (imperial) | English Model / Center Drive | 42 | 0.5 | ||
| 4204 | Quote Required | 7 In Stock | $46.00/each | EA | Electronic Motion and Controls Division | English Model | Ball | 4000 Series | 1 inch | 1 | 42 lb | 44.5 mm | Imperial Micrometer | Linear Stage | Imperial Micrometer | 1 | No | (imperial) | English Model / Center Drive | 42 | 1 |
