Low Pressure In-Line Filter - GS Series

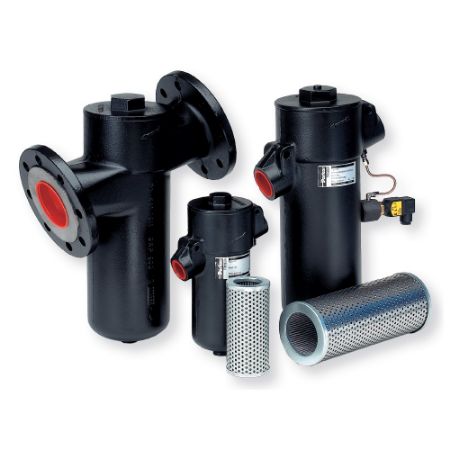

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Items marked with an asterisk * in the drop-down menus are standard choices.

The In-line GS Series comes in three different housing sizes and with several media options allowing a wide range of applications.
The Cast iron housings makes the GS series also suitable for marine application.
Pre-filtration with magnets is available as well as several connection options.
Available with Visual, Electrical or Visual/Electronic differential pressure indicators.
Max. nominal flow 350 l/min. Max. working pressure 40 bar.

Applications:
• Industrial gear box lube oil filter
• Heavy fuel oil filter for diesel engines
• Suction filter for fuel systems
• Low pressure hydraulic oil filter

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	UOM	Division	Filter Element Type	Seal Material	Indicator Pressure Setting	Options	Bypass Valve Pressure Rating	Flow Rate	Indicator Type	Filter Size	Micron Rating	Connection Type
	GSN320QVNFG161	Quote Required	Quote Required	TBD	EA	Hydraulic & Industrial Process Filtration Division EMEA	20Q Microglass	Fluorelastomer	No indicator	With bypass and magnets	1.6 bar	0 to 130 l/min	Indicator port plugged	GSN3	20 µm	G1
