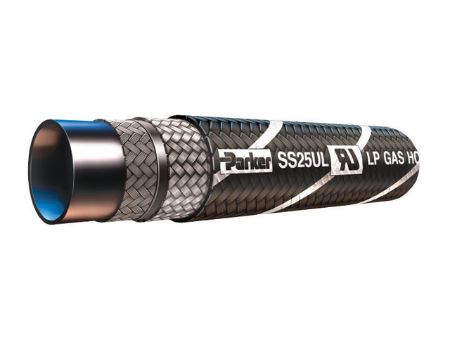

Liquefied Petroleum Gas Hose 350 PSI - SS25UL Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's SS25UL hose is a liquefied petroleum gas hose that has a constant working pressure of 350 PSI to deliver consistency and reliability. The SS25UL hose is designed, built, and tested to meet UL 21 and NFPA 58 specifications. Sizes range from 3/16” to 5/8” in diameter to fit the requirements of various markets.

Markets:
• Transportation
• Agriculture
• Material Handling

Features/Benefits:
• 350 PSI constant working pressure in different sizes
• Low-pressure service with liquefied petroleum gas
• UL 21 / NFPA 58 certifications
• Oil and LPG resistant synthetic fiber cover
• One fiber braid and one stainless steel wire braid

Applications:
• Liquefied petroleum gas (LPG)

Compatible Fittings:
• 26 series fittings
• 20 series fittings
• 22 series fittings

Warnings:

• Do not use hose for natural gas service where fixed/rigid pipe is more appropriate due to reduced permeation and overall strength and durability. Use rigid pipe, non-permeable tubing or hose with barrier constructions to convey natural gas whenever possible.

• Strictly adhere to the inspection procedures detailed in DOT regulation 49CFR 180.416 when using this product in a mobile application such as delivery or service vehicles.

•It is an industry recognized occurrence that LPG will permeate through the hose wall during operation and storage, therefore Parker LPG hoses are produced with a pinpricked cover from the factory to relief the expansion of liquid propane to gaseous propane as it permeates through the hose wall. Great care must be taken when discharging LPG hose to reduce the incident of damaging the hose from explosive decompression. RELEASE LPG AT A RATE THAT ALLOWS THE TRAPPED LPG TO DISSIPATE AS SLOWLY AS POSSIBLE. See the Tech Alert – LPG Hose Evacuation Process for more information from your LPG Distributor.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	UOM	Maximum Operating Temperature	Specifications Met	Minimum Bend Radius	Weight	Application	Media	Hose Cover Type	Maximum Operating Pressure	Minimum Operating Temperature	Hose Inner Tube Material	Hose Reinforcement Material	Inside Diameter	Compatible Fitting	Outside Diameter	Nominal Hose Inside Diameter	Division	Hose I.D. (size)	Pkg Qty/UOM	Material	Mating Fitting Series	Working Pressure	Inner Diameter	Pkg Qty	Mating End Fitting Series	Series	Inner Diameter Inch/mm	Material	Inch/Metric	Parker Group	Parker Division	Application	Working Pressure Range	Inner Diameter	Hose Pressure Range	Hose Category
SS25UL-10	5 In Stock	34 In Stock	$30.04	FT	FT	250 °F	UL 21.0	2-1/4 inch	0.29 lb/ft	Liquefied Petroleum Gas (LPG)	Welding Gases (Technical Gases)	Standard Cover	2.4 MPa	-40 °C	Synthetic Rubber	1 Braid of Fiber	1/2 inch	22 Series	0.920 inch	12 mm	Hose Products Division	-10	275 FT	Rubber	26, 20, 22	350 PSI (20 bar)	0.5 Inch	275	26, 20, 22	SS25UL	Inch	Rubber	Inch	Fluid Connector	Hose Products	Transportation LP Gas	250 to 499 PSI (17 to 34 bar)	0.5 Inch	Low	Petroleum
SS25UL-12	Quote Required	149 In Stock	$34.19	FT	FT	250 °F	UL 21.0	70 mm	0.55 kg/m	Liquefied Petroleum Gas (LPG)	Welding Gases (Technical Gases)	Standard Cover	2.4 MPa	-40 °C	Synthetic Rubber	1 Braid of Fiber	16 mm	22 Series	27.4 mm	16 mm	Hose Products Division	-12	250 FT	Rubber	26, 20, 22	350 PSI (20 bar)	0.625 Inch	250	26, 20, 22	SS25UL	Inch	Rubber	Inch	Fluid Connector	Hose Products	Transportation LP Gas	250 to 499 PSI (17 to 34 bar)	0.625 Inch	Low	Petroleum
SS25UL-4	27 In Stock	345 In Stock	$17.06	FT	FT	250 °F	AGA-AS	20 mm	0.11 lb/ft	Liquefied Petroleum Gas (LPG)	Welding Gases (Technical Gases)	Standard Cover	350 psi	-40 °F	Synthetic Rubber	1 Braid of Fiber	5 mm	22 Series	13.2 mm	5 mm	Hose Products Division	-4	300 FT	Rubber	26, 20, 22	350 PSI (20 bar)	0.188 Inch	300	26, 20, 22	SS25UL	Inch	Rubber	Inch	Fluid Connector	Hose Products	Transportation LP Gas	250 to 499 PSI (17 to 34 bar)	0.188 Inch	Low	Petroleum
SS25UL-5	Quote Required	Quote Required	TBD		FT	250 °F	AGA-AS	25 mm	0.19 kg/m	Liquefied Petroleum Gas (LPG)	Welding Gases (Technical Gases)	Standard Cover	2.4 MPa	-40 °F	Synthetic Rubber	1 Braid of Fiber and 1 Braid of Stainless Steel Wire	1/4 inch	20 Series	14.8 mm	6 mm	Hose Products Division	-5	250 FT	Rubber	26, 20, 22	350 PSI (20 bar)	0.25 Inch	250	26, 20, 22	SS25UL	Inch	Rubber	Inch	Fluid Connector	Hose Products	Transportation LP Gas	250 to 499 PSI (17 to 34 bar)	0.25 Inch	Low	Petroleum
SS25UL-6	987 In Stock	3890 In Stock	$17.40	FT	FT	121 °C	AS/NZS 1869D	30 mm	0.27 kg/m	Liquefied Petroleum Gas (LPG)	Welding Gases (Technical Gases)	Standard Cover	350 psi	-40 °F	Synthetic Rubber	1 Braid of Fiber	5/16 inch	22 Series	17.2 mm	8 mm	Hose Products Division	-6	200 FT	Rubber	26, 20, 22	350 PSI (20 bar)	0.313 Inch	200	26, 20, 22	SS25UL	Inch	Rubber	Inch	Fluid Connector	Hose Products	Transportation LP Gas	250 to 499 PSI (17 to 34 bar)	0.313 Inch	Low	Petroleum
SS25UL-8	Quote Required	Quote Required	TBD		FT	250 °F	UL 21.0	1-3/4 inch	0.21 lb/ft	Liquefied Petroleum Gas (LPG)	Welding Gases (Technical Gases)	Standard Cover	2.4 MPa	-40 °C	Synthetic Rubber	1 Braid of Fiber and 1 Braid of Stainless Steel Wire	10 mm	22 Series	0.770 inch	10 mm	Hose Products Division	-8	350 FT	Rubber	26, 20, 22	350 PSI (20 bar)	0.406 Inch	350	26, 20, 22	SS25UL	Inch	Rubber	Inch	Fluid Connector	Hose Products	Transportation LP Gas	250 to 499 PSI (17 to 34 bar)	0.406 Inch	Low	Petroleum
