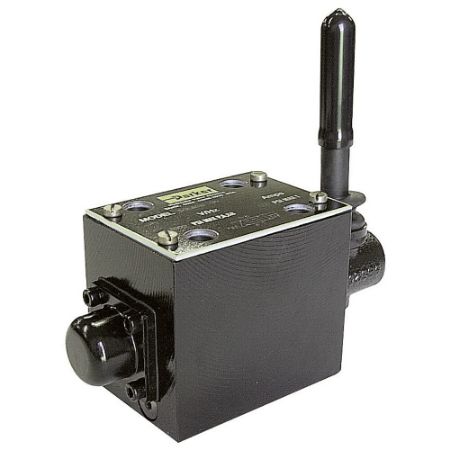

Lever Operated Directional Control Valve - D3L, D3LB Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D3L directional control valves are available in 2 or 3-position and conform to NFPA’s D05, CETOP 5 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Heavy duty handle design
• High flow, low pressure drop
• Spring return or detent styles available

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Size	Maximum Flow Rate	Weight	Mounting Type	Maximum Operating Temperature	Body Material	Division	Options	Spool Position	Valve Type	Seal Material	Minimum Operating Temperature	Spool Code	Actuation Type	Maximum Operating Pressure	Maximum Flow Rate	Size	Maximum Operating Pressure	Mounting Type
D3L1CN	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	3-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1CV	Quote Required	Quote Required	$0.01	EA	NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	3-Position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1EN	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1ENI7	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	Monitor Switch	2-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1EV	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1EVI7	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	Monitor Switch	2-Position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1KN	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1KNI7	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	Monitor Switch	2-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1KV	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1KVI7	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	Monitor Switch	2-Position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1NN	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	3-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L1NV	Quote Required	Quote Required	TBD		NFPA D05	40	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	3-Position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L20BN	Quote Required	Quote Required	$337.84	EA	NFPA D05	up to 40 gal/min Depending on Spool	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position . P to A and B to T in offset position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L20BNI7	Quote Required	Quote Required	TBD		NFPA D05	up to 40 gal/min Depending on Spool	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	Monitor Switch	2-Position . P to A and B to T in offset position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L20BV	Quote Required	Quote Required	TBD		NFPA D05	up to 40 gal/min Depending on Spool	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position . P to A and B to T in offset position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L20BVI7	Quote Required	Quote Required	TBD		NFPA D05	up to 40 gal/min Depending on Spool	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	Monitor Switch	2-Position . P to A and B to T in offset position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L20DN	Quote Required	Quote Required	$337.84	EA	NFPA D05	up to 40 gal/min Depending on Spool	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L20DV	Quote Required	Quote Required	TBD		NFPA D05	up to 40 gal/min Depending on Spool	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position	Lever Operated Directional Control Valve	Fluorocarbon	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L20HN	Quote Required	Quote Required	TBD		NFPA D05	up to 40 gal/min Depending on Spool	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	n/a	2-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
D3L20HNI7	Quote Required	Quote Required	TBD		NFPA D05	up to 40 gal/min Depending on Spool	8	Subplate	140	Gray Iron	Hydraulic Valve Systems Division	Monitor Switch	2-Position	Lever Operated Directional Control Valve	Nitrile	-4	4-Way	Hydraulic Pressure	5000	Up to 40 GPM depending on spool	NFPA D05, CETOP 5, NG 10	5000 PSI	Subplate
