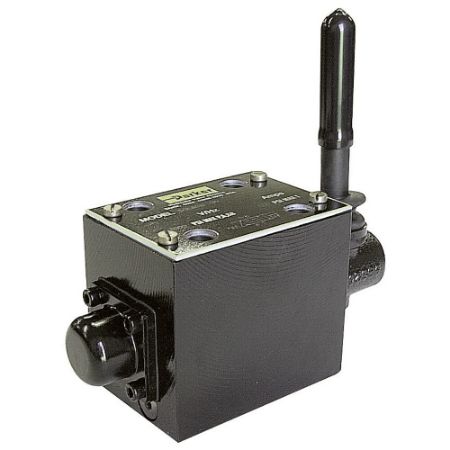

Lever Operated Directional Control Valve - D3L, D3LB Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D3L directional control valves are available in 2 or 3-position and conform to NFPA’s D05, CETOP 5 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Heavy duty handle design
• High flow, low pressure drop
• Spring return or detent styles available

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Valve Type	Actuation Type	Weight	Maximum Operating Pressure	Spool Code	Seal Material	Maximum Flow Rate	Body Material	Mounting Type	Minimum Operating Temperature	Division	Spool Position	Maximum Operating Temperature	Size	Options	Mounting Type	Size	Maximum Flow Rate	Maximum Operating Pressure
D3L1CV	Quote Required	Quote Required	TBD	Lever Operated Directional Control Valve	Hydraulic Pressure	8	5000	4-Way	Fluorocarbon	40	Gray Iron	Subplate	-4	Hydraulic Valve Systems Division	3-Position	140	NFPA D05	n/a	Subplate	NFPA D05, CETOP 5, NG 10	Up to 40 GPM depending on spool	5000 PSI
D3L20BN	Quote Required	Quote Required	TBD	Lever Operated Directional Control Valve	Hydraulic Pressure	8	5000	4-Way	Nitrile	up to 40 gal/min Depending on Spool	Gray Iron	Subplate	-4	Hydraulic Valve Systems Division	2-Position . P to A and B to T in offset position	140	NFPA D05	n/a	Subplate	NFPA D05, CETOP 5, NG 10	Up to 40 GPM depending on spool	5000 PSI
D3L20DN	Quote Required	Quote Required	TBD	Lever Operated Directional Control Valve	Hydraulic Pressure	8	5000	4-Way	Nitrile	up to 40 gal/min Depending on Spool	Gray Iron	Subplate	-4	Hydraulic Valve Systems Division	2-Position	140	NFPA D05	n/a	Subplate	NFPA D05, CETOP 5, NG 10	Up to 40 GPM depending on spool	5000 PSI
D3L30HV	Quote Required	Quote Required	TBD	Lever Operated Directional Control Valve	Hydraulic Pressure	8	5000	4-Way	Fluorocarbon	up to 40 gal/min Depending on Spool	Gray Iron	Subplate	-4	Hydraulic Valve Systems Division	2-Position	140	NFPA D05	n/a	Subplate	NFPA D05, CETOP 5, NG 10	Up to 40 GPM depending on spool	5000 PSI
D3L4CN	Quote Required	2 Limited Stock	$0.01/each	Lever Operated Directional Control Valve	Hydraulic Pressure	8	5000	4-Way	Nitrile	up to 40 gal/min Depending on Spool	Gray Iron	Subplate	-4	Hydraulic Valve Systems Division	3-Position	140	NFPA D05	n/a	Subplate	NFPA D05, CETOP 5, NG 10	Up to 40 GPM depending on spool	5000 PSI
D3L4CV	Quote Required	Quote Required	TBD	Lever Operated Directional Control Valve	Hydraulic Pressure	8	5000	4-Way	Fluorocarbon	up to 40 gal/min Depending on Spool	Gray Iron	Subplate	-4	Hydraulic Valve Systems Division	3-Position	140	NFPA D05	n/a	Subplate	NFPA D05, CETOP 5, NG 10	Up to 40 GPM depending on spool	5000 PSI
D3L8CN	Quote Required	Quote Required	TBD	Lever Operated Directional Control Valve	Hydraulic Pressure	8	5000	4-Way	Nitrile	up to 40 gal/min Depending on Spool	Gray Iron	Subplate	-4	Hydraulic Valve Systems Division	3-Position	140	NFPA D05	n/a	Subplate	NFPA D05, CETOP 5, NG 10	Up to 40 GPM depending on spool	5000 PSI
D3L8NV	Quote Required	Quote Required	TBD	Lever Operated Directional Control Valve	Hydraulic Pressure	8	5000	4-Way	Fluorocarbon	up to 40 gal/min Depending on Spool	Gray Iron	Subplate	-4	Hydraulic Valve Systems Division	3-Position	140	NFPA D05	n/a	Subplate	NFPA D05, CETOP 5, NG 10	Up to 40 GPM depending on spool	5000 PSI
