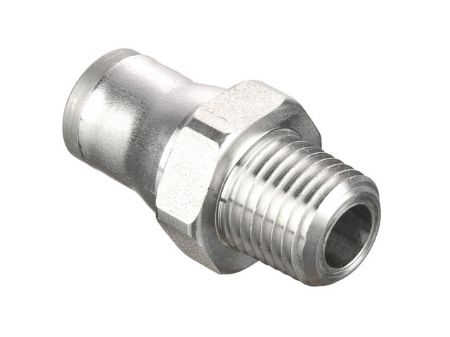

Legris LF3800 Series 3805 - Metric-Inch
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Legris LF3800 Series Metric-Inch Male Connector, Stainless Steel Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Thread 1 | Outer Diameter 1 | Parker Group | Material | Parker Division | Configuration Type | Thread 1 Type | Thread 1 | Operating Temperature | Outer Diameter 1 Inch/mm | Pressure Range | Material - Seal | Trade Name | Outer Diameter 1 | Configuration Sub-Type | Inch/Metric | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3805 06 14 | Quote Required | $59.40/each | EA | EA | 1/4 NPT | 6 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | Tube to Male | NPT | 1/4 NPT | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 6 mm | Male Connector | Metric-Inch | Legris LF3800 | ||
| 3805 08 14 | Quote Required | $78.95/each | EA | EA | 1/4 NPT | 8 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | Tube to Male | NPT | 1/4 NPT | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 8 mm | Male Connector | Metric-Inch | Legris LF3800 | ||
| 3805 10 14 | Quote Required | $61.97/each | EA | EA | 1/4 NPT | 10 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | Tube to Male | NPT | 1/4 NPT | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 10 mm | Male Connector | Metric-Inch | Legris LF3800 | ||
| 3805 12 18 | Quote Required | $105.04/each | EA | EA | 3/8 NPT | 12 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | Tube to Male | NPT | 3/8 NPT | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 12 mm | Male Connector | Metric-Inch | Legris LF3800 |
