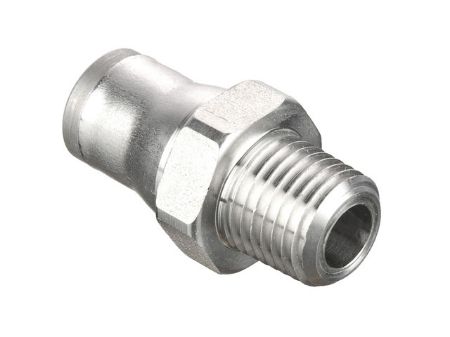

Legris LF3800 Series 3805 - Metric-Inch
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker Legris LF3800 Series Metric-Inch Male Connector, Stainless Steel Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Thread 1 | Outer Diameter 1 | Parker Group | Material | Parker Division | Configuration Type | Thread 1 Type | Thread 1 | Operating Temperature | Outer Diameter 1 Inch/mm | Pressure Range | Material - Seal | Trade Name | Outer Diameter 1 | Configuration Sub-Type | Inch/Metric | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3805 06 14 | Quote Required | $59.40/each | EA | EA | 1/4 NPT | 6 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | Tube to Male | NPT | 1/4 NPT | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 6 mm | Male Connector | Metric-Inch | Legris LF3800 | ||
| 3805 08 14 | Quote Required | $78.95/each | EA | EA | 1/4 NPT | 8 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | Tube to Male | NPT | 1/4 NPT | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 8 mm | Male Connector | Metric-Inch | Legris LF3800 | ||
| 3805 10 14 | Quote Required | $61.97/each | EA | EA | 1/4 NPT | 10 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | Tube to Male | NPT | 1/4 NPT | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 10 mm | Male Connector | Metric-Inch | Legris LF3800 | ||
| 3805 12 18 | Quote Required | $105.04/each | EA | EA | 3/8 NPT | 12 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | Tube to Male | NPT | 3/8 NPT | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 12 mm | Male Connector | Metric-Inch | Legris LF3800 |
