Lanyard Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

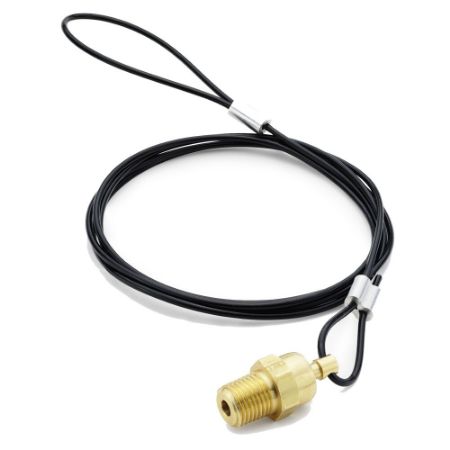

Parker's lanyard valve compact design is ideally suited for releasing condensate from air tanks. Removing condensate allows for more volume of air in the system reducing compressor load and extending compressor life. A pulling action exerted on the cable cocks the stem, allowing condensate to pass through the valve. Releasing the cable resets the stem which returns the valve to its closed position. Parker's lanyard valve is available in 36”, 48” and 60” cable lengths.
Markets:
• Heavy duty truck
• Mobile
Features/Benefits:
• Brass body
• Compact design
• Various cable lengths
Applications:
• Air tanks
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Division | Maximum Operating Temperature | Body Material | Minimum Operating Temperature | Cable Length | Connection 1 Thread Size (inch) | Connection 1 Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LV91-4-036 | Quote Required | 3 In Stock | $36.93 | EA | 150 psi | Fluid System Connectors Division | 200 °F | Brass | -40 °C | 36 | 1/4 | Male Pipe | |
| LV91-4-048 | Quote Required | TBD | 150 psi | Fluid System Connectors Division | 200 °F | Brass | -34 °C | 48 | 1/4 | Male Pipe | |||
| LV91-4-060 | Quote Required | TBD | 10 bar | Fluid System Connectors Division | 93 °C | Brass | -30 °F | 60 | 1/4 | Male Pipe | |||
| LV91HF-4-SUB | Quote Required | TBD | 10 bar | Fluid System Connectors Division | 200 °F | Brass | -34 °C | na | 1/4 | Male Pipe |
