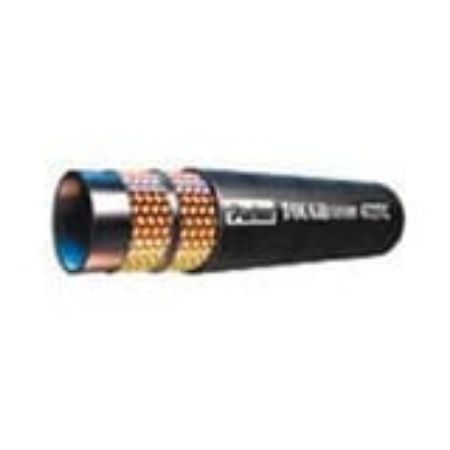

Hydraulic Industry Standard Hose 1300-2250 PSI – 472TC Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 472TC hose is a hydraulic industry standard hose that has a pressure range of 1300-2250 PSI, which allows for one to meet the specifications of any task at hand. The 472TC is designed, built, and tested to meet USCG, DNV, MSHA and ABS requirements. The two wire braided construction offers more flexibility than the standard spiral counterpart in order to fit your needs. The synthetic rubber inner tube provides a wide range of fluid compatibility. Sizes range from 1-1/4” to 2” in diameter.
Markets:
• Transportation
• Military
• Agriculture
• Forestry
• Utility Equipment
• Personal Lift Equipment
• Waste & Refuse
• Material Handling
• Industrial
Features/Benefits:
• Synthetic rubber inner tube provides wide fluid compatibility
• ToughCover to prevent abrasion
• 1300-2250 PSI working pressure in different sizes
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series
| Action | Part No. | Availability | Partner Available | Price | Maximum Operating Temperature | Hose Cover Type | Compatible Fitting | Media | Hose Inner Tube Material | Outside Diameter | Inside Diameter | Division | Specifications Met | Minimum Bend Radius | Hose Reinforcement Material | Weight | Maximum Operating Pressure | Cover Material | Minimum Operating Temperature | Nominal Hose Inside Diameter | Application | Hose I.D. (size) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 472TC-20 | 242 In Stock | 1460 In Stock | $43.04/each | 100 °C | Tough Cover | 43 Series | Lubricants | Synthetic Rubber | 1.790 inch | 1-1/4 inch | Hose Products Division | ABS | 8-1/4 inch | 2 Braids of Steel Wire | 1.34 lb/ft | 2250 psi | MSHA Approved | -40 °C | 31 mm | Petroleum Base Hydraulic Fluids | -20 | |
| 472TC-24 | 234 In Stock | 732 In Stock | $51.44/each | 100 °C | Tough Cover | 43 Series | Petroleum Hydraulic Fluids | Synthetic Rubber | 2.010 inch | 1-1/2 inch | Hose Products Division | HF Type B | 250 mm | 2 Braids of Steel Wire | 1.44 lb/ft | 1800 psi | Synthetic Rubber Abrasion Resistant | -40 °F | 38 mm | Lubricating Oils | -24 | |
| 472TC-32 | 224 In Stock | 522 In Stock | $60.27/each | 212 °F | Tough Cover | 43 Series | Lubricants | Synthetic Rubber | 2.540 inch | 2 inch | Hose Products Division | DNV | 315 mm | 2 Braids of Steel Wire | 1.93 lb/ft | 1300 psi | MSHA Approved | -40 °C | 51 mm | Petroleum Base Hydraulic Fluids | -32 |
