Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

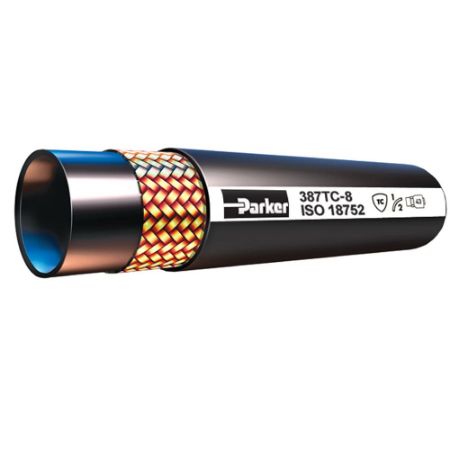

The Parker 387 GlobalCore hose is a constant working pressure hydraulic hose offering 3,000 PSI in all sizes. This light, durable, and easy-to-bend hose meets and exceeds ISO 18752 performance specifications. The 387 hose offers low force-to-flex and delivers full SAE-standard pressure at one-half SAE bend radius, resulting in easier handling and installation. 387 hose also offers a 30% smaller OD by area compared with SAE-standard spiral hose. Compatible with petroleum-based hydraulic fluids and lubricating oils, 387 GlobalCore hose is offered in sizes ranging from ¼-inch to 2 inches in diameter and with three cover options: Standard, ToughCover, and SuperTough.

Markets:

• Transportation

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Waste & Refuse

• Material Handling

• Forestry

• Railroad

• Utility Equipment

• Personal Lift Equipment

• Machine Tool

Features/Benefits:

• Standard or ToughCover options to prevent abrasion

• Half SAE bend radius for ease of installation and low force to flex

• 30% smaller O.D. by area compared to the SAE spiral hose

• 3,000 PSI constant working pressure in all sizes

• Lighter than the standard SAE spiral hose

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 43 series fittings (for sizes -4 to -20)

• 77 series fittings (for sizes -20 to -32)

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Maximum Operating Pressure	Disclaimer	Outside Diameter	Inside Diameter	Nominal Hose Inside Diameter	Minimum Bend Radius	Cover Material	Specifications Met	Hose Reinforcement Material	Weight	Hose Inner Tube Material	Minimum Operating Temperature	Application	Division	Maximum Operating Temperature	Hose Cover Type	Size	Media	Compatible Fitting	Hose I.D. (size)	Hose Cover Type
387TC-16	Quote Required	13147 In Stock	$18.77/each	210 bar	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	1.4 inch	1 inch	25 mm	6 inch	Synthetic Rubber Abrasion Resistant	ISO 18752, Type AC	2 Braids of Steel Wire	0.79 lb/ft	Synthetic Rubber	-40 °F	Petroleum Base Hydraulic Fluids	Hose Products Division	125 °C	Tough Cover	-16	Petroleum Hydraulic Fluids	43 Series	-16	ToughCover
387TC-20	1361 In Stock	9865 In Stock	$41.10/each	21 MPa	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	1.820 inch	31.5 mm	31 mm	8-1/4 inch	Synthetic Rubber Abrasion Resistant	ISO 18752, Type CC	4 Spirals	1.74 lb/ft	Synthetic Rubber	-40 °F	Lubricating Oils	Hose Products Division	257 °F	Tough Cover	-20	Petroleum Hydraulic Fluids	43 Series	-20	ToughCover
387TC-24	763 In Stock	5979 In Stock	$55.81/each	21 MPa	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	52.8 mm	38 mm	38 mm	250 mm	Synthetic Rubber Abrasion Resistant	ISO 18752, Type CC	4 Spirals	2.99 kg/m	Synthetic Rubber	-40 °F	Petroleum Base Hydraulic Fluids	Hose Products Division	125 °C	Tough Cover	-24	Petroleum Hydraulic Fluids	77 Series	-24	ToughCover
387TC-32	473 In Stock	4375 In Stock	$82.88/each	3000 psi	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	2.610 inch	51 mm	51 mm	320 mm	Synthetic Rubber Abrasion Resistant	ISO 18752, Type CC	4 Spirals	2.75 lb/ft	Synthetic Rubber	-40 °F	Petroleum Base Hydraulic Fluids	Hose Products Division	257 °F	Tough Cover	-32	Petroleum Hydraulic Fluids	77 Series	-32	ToughCover
387TC-4	Quote Required	28722 In Stock	$5.53/each	3000 psi	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	13.4 mm	1/4 inch	6 mm	2 inch	Synthetic Rubber Abrasion Resistant	ISO 18752, Type AC	1 Braid of Steel Wire	0.24 kg/m	Synthetic Rubber	-40 °F	Lubricating Oils	Hose Products Division	125 °C	Tough Cover	-4	Lubricants	43 Series	-4	ToughCover
387TC-6	Quote Required	48079 In Stock	$5.78/each	3000 psi	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	17.4 mm	10 mm	10 mm	2-1/2 inch	Synthetic Rubber Abrasion Resistant	ISO 18752, Type AC	1 Braid of Steel Wire	0.34 kg/m	Synthetic Rubber	-40 °C	Lubricating Oils	Hose Products Division	125 °C	Tough Cover	-6	Lubricants	43 Series	-6	ToughCover
387TC-8	Quote Required	45434 In Stock	$7.32/each	21 MPa	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	20.7 mm	1/2 inch	12 mm	90 mm	Synthetic Rubber Abrasion Resistant	ISO 18752, Type AC	1 Braid of Steel Wire	0.43 kg/m	Synthetic Rubber	-40 °F	Lubricating Oils	Hose Products Division	257 °F	Tough Cover	-8	Lubricants	43 Series	-8	ToughCover
