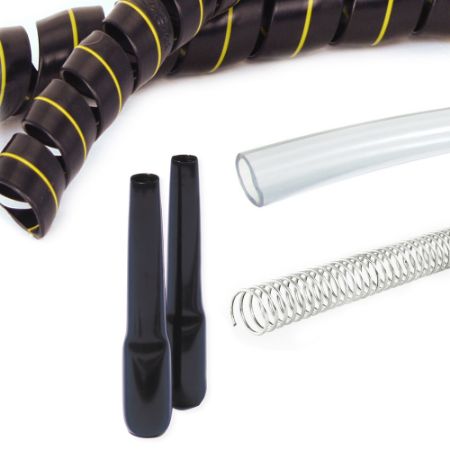

Hose Guards for Parflex Hoses
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Hose Guards prolong the service life of hoses that are exposed to rugged, hard-wearing and harsh applications. They are available in several styles for protection against abrasion, wear and cutting on Parflex Hoses and can also be used to assist with preventing kinking of hose.
Parker High Strength Spiral Guard (PSG) delivers anti-crush performance, exceptionally smooth facing and rounded edges to prevent the spiral guard from getting caught on rough surfaces. It also features a low friction interior to minimize wear on the hose for superior performance in mining, automotive and mobile equipment applications.
Other designs include metallic spring Guards and armor Guards, guards for PTFE hoses, and PVC guards for protection against abrasion and extreme physical abuse. For complete product overviews and specifications, refer to the literature on the Product Support tab.
Markets:
• Mining
• Mobile Equipment
• Transportation
• Industrial
Features/Benefits:
• Protects hoses from abrasion, cutting and extreme physical abuse
• Assists in preventing kinking
Applications:
• Harsh environments and/or confined spaces where hoses need added crush or abrasion resistance
Available Hose Guard Styles:
• PV - Clear Vinyl Hose Guard
• HBR - Hose Bend Restrictor for use with HLB, MSH, 1035HT or 1035A Hose
• 5CNG/CNGLT - Black Vinyl CNG Hose Guard for 5CNG Hose
• SSG - Pre-made Spring Guards
• SG - Steel Spring Guards
• AG - Flat Steel Armor Guards
• PSG - Spiral Guard
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Length per Package | Product Style | Hose Inside Diameter | Length | Style | Nominal Part I.D. | Hose Size Range (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HBR-4 | 31 In Stock | 331 In Stock | $5.44/each | EA | Parflex Division | n/a | HBR - Hose Bend Restrictor | n/a | 5 inch | HBR - Hose Bend Restrictor | 0.50 | na | |
| HBR-6 | Quote Required | 179 In Stock | $6.02/each | EA | Parflex Division | n/a | HBR - Hose Bend Restrictor | n/a | 6 inch | HBR - Hose Bend Restrictor | 0.63 | na | |
| PSG-16 | 515 In Stock | 638 In Stock | $2.49/foot | FT | Parflex Division | n/a | Spiral Guard | 12 to 17 mm | n/a | PSG - Black/Yellow Polyethylene | na | 0.472 - 0.669 | |
| PSG-20 | 561 In Stock | 594 In Stock | $2.89/foot | FT | Parflex Division | n/a | Polyethylene | 16 to 22 mm | n/a | PSG - Black/Yellow Polyethylene | na | 0.630 - 0.866 | |
| PSG-25 | 601 In Stock | 428 In Stock | $3.70/foot | FT | Parflex Division | n/a | Spiral Guard | 22 to 28 mm | n/a | PSG - Black/Yellow Polyethylene | na | 0.866 - 1.100 | |
| PSG-32 | 443 In Stock | 245 In Stock | $7.94/foot | FT | Parflex Division | n/a | Spiral Guard | 27 to 33 mm | n/a | PSG - Black/Yellow Polyethylene | na | 1.060 - 1.300 | |
| PSG-40 | 380 In Stock | 478 In Stock | $13.42/foot | FT | Parflex Division | n/a | Polyethylene | 33 to 42 mm | n/a | PSG - Black/Yellow Polyethylene | na | 1.300 - 1.650 | |
| PSG-50 | 351 In Stock | 1353 In Stock | $13.96/foot | FT | Parflex Division | n/a | Black/Yellow | 42 to 55 mm | n/a | PSG - Black/Yellow Polyethylene | na | 1.650 - 2.170 | |
| PSG-63 | 129 In Stock | 100 In Stock | $19.62/foot | FT | Parflex Division | n/a | Spiral Guard | 52 to 65 mm | n/a | PSG - Black/Yellow Polyethylene | na | 2.050 - 2.560 | |
| PSG-75 | 19 In Stock | 26 In Stock | $21.97/foot | FT | Parflex Division | n/a | Black/Yellow | 65 to 80 mm | n/a | PSG - Black/Yellow Polyethylene | na | 2.560 - 3.150 | |
| PSG-90 | Quote Required | $32.68/foot | FT | Parflex Division | n/a | Spiral Guard | 80 to 150 mm | n/a | PSG - Black/Yellow Polyethylene | na | 3.150 - 5.910 |
