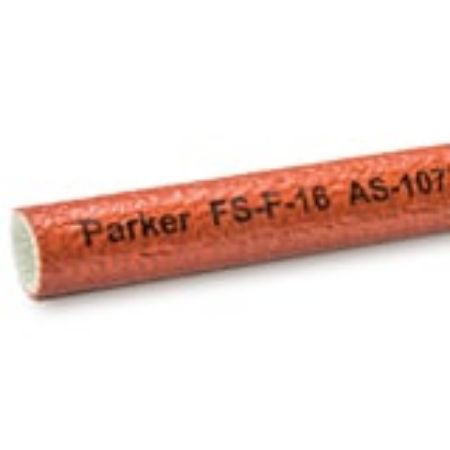

High Temperature Hose Sleeve - Firesleeve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Firesleeve is a flame resistant sheath that protects the hose from extreme temperature conditions. The Firesleeve easily slides over hoses and readily expands over fittings. Our Firesleeve can be secured in place with our FSC Clamp and Firesleeve Tape. The Firesleeve inside dimension (I.D.) must exceed the outside dimension (O.D.) of the hose in order for easy hose insertion. Available in 0.58” to 3.71” in I.D.

Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personal Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
• Automotive

Features/Benefits:
• Flame resistant to protect from extreme temperature situations
• For use with FSC Clamp to keep sleeve in place
• Oil and Fluid Resistance: Impervious to most liquids including those with a hydrocarbon base. Remains functional after immersion for 120 hours at 80F in MIL-L-6082 and Skydrol 500.

Applications:
• For use in high temperature applications

Specifications:
• Braided fiberglass sleeve and an orange, bonded and seamless silicone rubber cover
• Conforms to SAE Aerospace standard 1072E
• Temperature range: -65F to +500F (-54C to +260C) continuous exposure, up to 2000F (1093C) for 15-20 minutes and up to 3000F (1650C) for 15-30 seconds

Certifications:
• UL 1441 Certified
• VW1 Flame Test Certified
• MSHA Certified for use in underground mines
• SAE AS1072E
• DNV-GL Certified to 800C/30 mins (ISO15540 & ISO15541)
• BS EN 373 Molten Splash Tested
• BS EN 388 Abrasion Tested
• BS EN ISO 6940 Flame Resistance Tested
• BS EN ISO 6530 Oil Resistance Tested
• BS 2576 Tensile Strength Tested
• DIN 45545 Low Smoke Toxicity
• DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility
• DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity
• LNE French Rail Certification STM-S-001; Class F0
• DIN EN45545-2:2013-08 Rail Certification

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Inside Diameter	Division	Inside Diameter (inch)
FS-F-10	100 In Stock	2162 In Stock	$14.70/foot	FT	14.73 mm	Hose Products Division	0.58
FS-F-11	Quote Required	82 In Stock	$16.18/foot	FT	16.51 mm	Hose Products Division	0.65
FS-F-12	9 In Stock	604 In Stock	$17.22/foot	FT	18.03 mm	Hose Products Division	0.71
FS-F-14	Quote Required	1543 In Stock	$19.34/foot	FT	21.34 mm	Hose Products Division	0.84
FS-F-16	93 In Stock	404 In Stock	$23.00/foot	FT	24.38 mm	Hose Products Division	0.96
FS-F-18	25 In Stock	1964 In Stock	$24.84/foot	FT	27.43 mm	Hose Products Division	1.08
FS-F-20	50 In Stock	3382 In Stock	$26.52/foot	FT	30.73 mm	Hose Products Division	1.21
FS-F-24	Quote Required	3905 In Stock	$27.22/foot	FT	37.08 mm	Hose Products Division	1.46
FS-F-28	Quote Required	261 In Stock	$31.68/foot	FT	43.69 mm	Hose Products Division	1.72
FS-F-30	52 In Stock	339 In Stock	$32.52/foot	FT	46.74 mm	Hose Products Division	1.84
FS-F-32	Quote Required	72 In Stock	$37.48/foot	FT	49.78 mm	Hose Products Division	1.96
FS-F-38	8 In Stock	209 In Stock	$49.06/foot	FT	59.44 mm	Hose Products Division	2.34
FS-F-40	33 In Stock	5 In Stock	$57.48/foot	FT	62.48 mm	Hose Products Division	2.46
