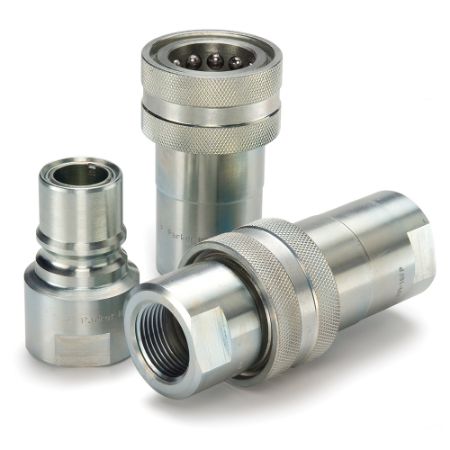

High Flow, Valved, Hydraulic Quick Couplings - HP Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
HP Series Couplers (hydraulic) 5000 psi connect with HP Series Nipples.
Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
Technical Characteristics:
• Sizes: 1” and 1-1/2””
• Material: Steel
• Port Ends: Female NPSF, Female ORB, Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Industrial
• Construction
• Mobile Equipment
Features/Benefits:
• Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
• High flow with minimal pressure drop
Applications:
• Industrial hydraulic lines
• Construction mobile equipment
Read More...Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
Technical Characteristics:
• Sizes: 1” and 1-1/2””
• Material: Steel
• Port Ends: Female NPSF, Female ORB, Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Industrial
• Construction
• Mobile Equipment
Features/Benefits:
• Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
• High flow with minimal pressure drop
Applications:
• Industrial hydraulic lines
• Construction mobile equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Hex Size | Minimum Operating Temperature | Body Material | Division | Maximum Operating Temperature | Maximum Operating Pressure | Valve Type | Plating Type | Flow Rate | Application | Product Type | Seal Material | Connection Type | Coupling Half | Body Size | Connection Thread Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP-1001-16FP | 4 In Stock | 4 In Stock | $480.71/each | EA | 1.62 inch | -40 °F | Steel | Quick Coupling Division | 250 °F | 5000 psi | Poppet | Zinc with clear trivalent chromate | 50 Gal/min | Hydraulic, High Pressure | Manual Connect inch | Nitrile | Female NPSF | Female Coupler | 1 | 1 - 11 1/2 | |
| HP-1002-16FP | 2 Limited Stock | 6 In Stock | $356.67/each | EA | 1.62 inch | -40 °F | Steel | Quick Coupling Division | 250 °F | 5000 psi | Poppet | Zinc with clear trivalent chromate | 50 Gal/min | Hydraulic, High Pressure | Manual Connect inch | Nitrile | Female NPSF | Male Nipple | 1 | 1 - 11 1/2 | |
| HP-1501-24FP | Quote Required | 7 In Stock | $756.94/each | EA | 2.25 inch | -40 °F | Steel | Quick Coupling Division | 250 °F | 5000 psi | Poppet | Zinc with clear trivalent chromate | 100 Gal/min | Hydraulic, High Pressure | Manual Connect inch | Nitrile | Female NPTF | Female Coupler | 1 1/2 | 1 1/2 - 11 1/2 | |
| HP-1502-24FP | Quote Required | 2 Limited Stock | $477.25/each | EA | 2.25 inch | -40 °F | Steel | Quick Coupling Division | 250 °F | 5000 psi | Poppet | Zinc with clear trivalent chromate | 100 Gal/min | Hydraulic, High Pressure | Manual Connect inch | Nitrile | Female NPTF | Male Nipple | 1 1/2 | 1 1/2 - 11 1/2 |
