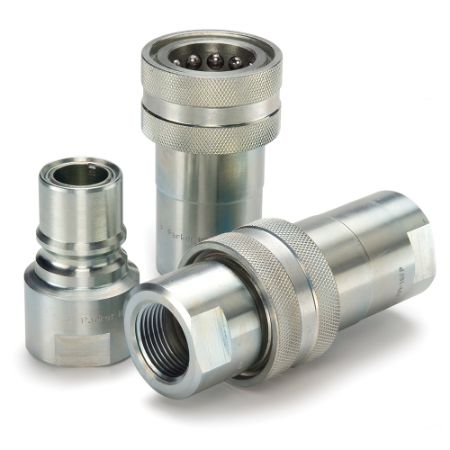

High Flow, Valved, Hydraulic Quick Couplings - HP Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
HP Series Couplers (hydraulic) 5000 psi connect with HP Series Nipples.
Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
Technical Characteristics:
• Sizes: 1” and 1-1/2””
• Material: Steel
• Port Ends: Female NPSF, Female ORB, Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Industrial
• Construction
• Mobile Equipment
Features/Benefits:
• Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
• High flow with minimal pressure drop
Applications:
• Industrial hydraulic lines
• Construction mobile equipment
Read More...Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
Technical Characteristics:
• Sizes: 1” and 1-1/2””
• Material: Steel
• Port Ends: Female NPSF, Female ORB, Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Industrial
• Construction
• Mobile Equipment
Features/Benefits:
• Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
• High flow with minimal pressure drop
Applications:
• Industrial hydraulic lines
• Construction mobile equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Hex Size | Minimum Operating Temperature | Valve Type | Product Type | Plating Type | Flow Rate | Body Material | Division | Maximum Operating Pressure | Application | Maximum Operating Temperature | Connection Thread Size (inch) | Coupling Half | Body Size | Connection Type | Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP-1001-16FB | Quote Required | TBD | 1.62 | -40 | Poppet | Manual Connect | Zinc with clear trivalent chromate | 50 | Steel | Quick Coupling Division | 5000 | High Pressure Hydraulics | 250 | 1 - 11 1/2 | Female Coupler | 1 | Female BSPP | ||||
| HP-1001-16FO | Quote Required | TBD | 1.62 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 50 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 5/16 - 12 | Female Coupler | 1 | Female ORB | Nitrile | |||
| HP-1001-16FP | Quote Required | 6 In Stock | $466.71 | EA | 1.62 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 50 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 - 11 1/2 | Female Coupler | 1 | Female NPSF | Nitrile | |
| HP-1002-16FB | Quote Required | TBD | 1.62 | -40 | Poppet | Manual Connect | Zinc with clear trivalent chromate | 50 | Steel | Quick Coupling Division | 5000 | High Pressure Hydraulics | 250 | 1 - 11 1/2 | Male Nipple | 1 | Female BSPP | Nitrile | |||
| HP-1002-16FO | Quote Required | TBD | 1.62 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 50 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 5/16 - 12 | Male Nipple | 1 | Female ORB | Nitrile | |||
| HP-1002-16FP | Quote Required | 6 In Stock | $346.28 | EA | 1.62 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 50 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 - 11 1/2 | Male Nipple | 1 | Female NPSF | Nitrile | |
| HP-1501-24FB | Quote Required | TBD | 2.25 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 100 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 1/2 - 11 1/2 | Female Coupler | 1 1/2 | Female BSPP | Nitrile | |||
| HP-1501-24FO | Quote Required | TBD | 2.25 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 100 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 7/8 - 12 | Female Coupler | 1 1/2 | Female ORB | Nitrile | |||
| HP-1501-24FP | Quote Required | 14 In Stock | $734.89 | EA | 2.25 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 100 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 1/2 - 11 1/2 | Female Coupler | 1 1/2 | Female NPTF | Nitrile | |
| HP-1502-24FB | Quote Required | TBD | 2.25 | -40 | Poppet | Manual Connect | Zinc with clear trivalent chromate | 100 | Steel | Quick Coupling Division | 5000 | Hydraulic, high pressure | 250 | 1 1/2 - 11 1/2 | Male Nipple | 1 1/2 | Female BSPP | Nitrile | |||
| HP-1502-24FO | Quote Required | $57.61 | EA | 2.25 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 100 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 7/8 - 12 | Male Nipple | 1 1/2 | Female ORB | Nitrile | ||
| HP-1502-24FP | Quote Required | 2 Limited Stock | $463.35 | EA | 2.25 inch | -40 °F | Poppet | Manual Connect inch | Zinc with clear trivalent chromate | 100 Gal/min | Steel | Quick Coupling Division | 5000 psi | Hydraulic, high pressure | 250 °F | 1 1/2 - 11 1/2 | Male Nipple | 1 1/2 | Female NPTF | Nitrile |
