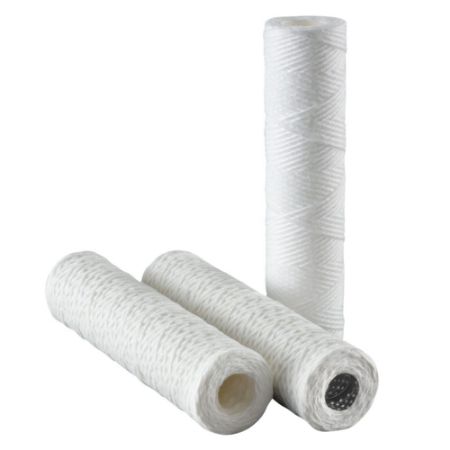

Fulflo Honeycomb Wound Filter Cartridges | Multi-purpose design with nominal 90% efficiency from 0.5-150 micron

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker has been a leader in filter media innovation and performance since we first invented the Honeycomb™ Filter Tube over 65 years ago. Parker has the world’s largest manufacturing capacity for wound filter cartridges, offering superior quality along with technical, engineering and marketing support.
Effective removal ratings at nominal 90% efficiency from 0.5μm to 150μm.

Features/Benefits
• A broad range of media provide excellent compatibility with a variety of organic solvents, animal, petroleum and vegetable oils
• Optional core covers and end treatments assure fiber migration control
• Multiple length filter cartridges minimize change-out time, eliminate spacers and are available to fi t competitive filter vessels
• FDA grade polypropylene (DOE only) filter cartridges certified to ANSI/ NSF61 standard for contact with drinking water components
• Continuous strand winding geometry provides performance consistency
• One-piece metal extended center core option eliminates the need for cartridge guides in all competitive and Fulflo® multi-cartridge vessels
• A special snap-in extender is available for polypropylene cores
• Cotton, polypropylene, nylon and polyester materials are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21
• O-ring/end cap options available
• ISO9001:2008 registered company
Applications
• Oxidizing Agent Filtration
• Petroleum Oil Filtration
• Concentrated Filtration
• Photo Solutions Filtration
• Potable Liquid Filtration
• Amines Filtration
• Dilute Acids & Alkali Filtration
• Water Filtration
• Prefilter for Membranes
• Mineral Acid Filtration
• Organic Acids & Solvent Filtration

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Brand	Function	Specifications Met	Flow Rate	Industry	Media	Inside Diameter	End Cap Material	Filter Construction	End Cap Configuration	Length (inch)	Outside Diameter (inch)	Core Type	Packaging	Seal Material	End Cap Finish	Core Cover Material	Filter Construction	Micron Rating (µm)
11R30	60 In Stock	Quote Required	$25.94/each	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Cotton FDA Grade	1 inch	No end cap	Wound	DOE	30	2 7/16	Tinned steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Cotton FDA Grade	50
15R10A	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Cotton FDA Grade	1	No end cap	Wound	DOE	10	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Cotton FDA Grade	20
15R10SV	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Cotton FDA Grade	1	No end cap	Wound	DOE	10	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	Nonwoven polyester	Cotton FDA Grade	20
15R20V	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Cotton FDA Grade	1	No end cap	Wound	DOE	20	2 7/16	Tinned steel	STANDARD PACKAGING	No gasket	No end treatment	Nonwoven polyester	Cotton FDA Grade	20
17R10	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Cotton FDA Grade	1	No end cap	Wound	DOE	10	2 7/16	Tinned steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Cotton FDA Grade	15
19R10SV	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Cotton FDA Grade	1	No end cap	Wound	DOE	10	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	Nonwoven polyester	Cotton FDA Grade	10
19R20S	Quote Required	Quote Required	$28.50/each	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Cotton FDA Grade	1	No end cap	Wound	DOE	20	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Cotton FDA Grade	10
19R30A	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Cotton FDA Grade	1	No end cap	Wound	DOE	30	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Cotton FDA Grade	10
E15R10AV	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Rayon FDA Grade	1	No end cap	Wound	DOE	10	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	Nonwoven polyester	Rayon FDA Grade	20
E15R10SV	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Rayon FDA Grade	1	No end cap	Wound	DOE	10	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	Nonwoven polyester	Rayon FDA Grade	20
E8R10	Quote Required	6 In Stock	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Rayon FDA Grade	1	No end cap	Wound	DOE	10	2 7/16	Tinned steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Rayon FDA Grade	100
M17R10A	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1	No end cap	Wound	DOE	10	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	15
M19R10A	10 In Stock	Quote Required	$9.29/each	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1	No end cap	Wound	DOE	10	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	10
M19R20-45A	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1 inch	No end cap	Wound	DOE	20	4 1/2	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	10
M19R20A	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1	No end cap	Wound	DOE	20	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	10
M19R30S	Quote Required	Quote Required	$35.88/each	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1	No end cap	Wound	DOE	30	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	10
M19R40A	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1	No end cap	Wound	DOE	40	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	10
M19R40S	Quote Required	Quote Required	TBD	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1	No end cap	Wound	DOE	40	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	10
M23R30A	Quote Required	Quote Required	$30.89/each	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	5 gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1	No end cap	Wound	DOE	30	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	5
M39R20A	15 In Stock	Quote Required	$19.08/each	EA	Industrial Process Filtration Division	domnick hunter	Clarification/Prefiltration/Polishing	FDA	4 Gal/min per 10 inch	Food and beverage	Polypropylene FDA grade	1	No end cap	Wound	DOE	20	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	1
