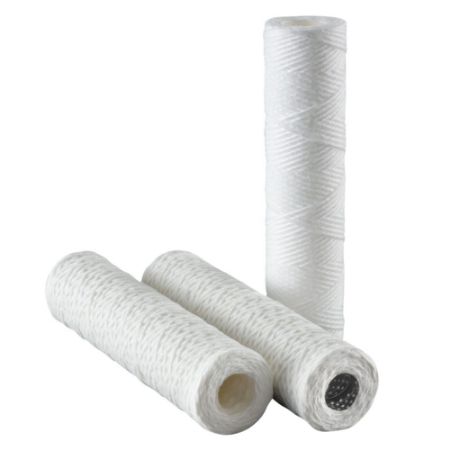

Fulflo Honeycomb Wound Filter Cartridges | Multi-purpose design with nominal 90% efficiency from 0.5-150 micron

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker has been a leader in filter media innovation and performance since we first invented the Honeycomb™ Filter Tube over 65 years ago. Parker has the world’s largest manufacturing capacity for wound filter cartridges, offering superior quality along with technical, engineering and marketing support.
Effective removal ratings at nominal 90% efficiency from 0.5μm to 150μm.

Features/Benefits
• A broad range of media provide excellent compatibility with a variety of organic solvents, animal, petroleum and vegetable oils
• Optional core covers and end treatments assure fiber migration control
• Multiple length filter cartridges minimize change-out time, eliminate spacers and are available to fi t competitive filter vessels
• FDA grade polypropylene (DOE only) filter cartridges certified to ANSI/ NSF61 standard for contact with drinking water components
• Continuous strand winding geometry provides performance consistency
• One-piece metal extended center core option eliminates the need for cartridge guides in all competitive and Fulflo® multi-cartridge vessels
• A special snap-in extender is available for polypropylene cores
• Cotton, polypropylene, nylon and polyester materials are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21
• O-ring/end cap options available
• ISO9001:2008 registered company
Applications
• Oxidizing Agent Filtration
• Petroleum Oil Filtration
• Concentrated Filtration
• Photo Solutions Filtration
• Potable Liquid Filtration
• Amines Filtration
• Dilute Acids & Alkali Filtration
• Water Filtration
• Prefilter for Membranes
• Mineral Acid Filtration
• Organic Acids & Solvent Filtration

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Brand	Industry	Filter Construction	Specifications Met	Flow Rate	Media	End Cap Material	Function	Inside Diameter	Division	End Cap Configuration	Length (inch)	Outside Diameter (inch)	Core Type	Packaging	Seal Material	End Cap Finish	Core Cover Material	Filter Construction	Micron Rating (µm)
11R30	60 In Stock	Quote Required	$25.94/each	EA	domnick hunter	Food and beverage	Wound	FDA	5 gal/min per 10 inch	Cotton FDA Grade	No end cap	Clarification/Prefiltration/Polishing	1 inch	Industrial Process Filtration Division	DOE	30	2 7/16	Tinned steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Cotton FDA Grade	50
19R20S	Quote Required	Quote Required	$28.50/each	EA	domnick hunter	Food and beverage	Wound	FDA	5 gal/min per 10 inch	Cotton FDA Grade	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	20	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Cotton FDA Grade	10
M19R10A	10 In Stock	Quote Required	$9.29/each	EA	domnick hunter	Food and beverage	Wound	FDA	5 Gal/min per 10 inch	Polypropylene FDA grade	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	10	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	10
M19R30S	Quote Required	Quote Required	$35.88/each	EA	domnick hunter	Food and beverage	Wound	FDA	5 Gal/min per 10 inch	Polypropylene FDA grade	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	30	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	10
M23R30A	Quote Required	Quote Required	$30.89/each	EA	domnick hunter	Food and beverage	Wound	FDA	5 Gal/min per 10 inch	Polypropylene FDA grade	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	30	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	5
M39R20A	15 In Stock	Quote Required	$19.08/each	EA	domnick hunter	Food and beverage	Wound	FDA	4 Gal/min per 10 inch	Polypropylene FDA grade	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	20	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	1
M39R20G	Quote Required	Quote Required	$29.78/each	EA	domnick hunter	Food and beverage	Wound	FDA	4 Gal/min per 10 inch	Polypropylene FDA grade	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	20	2 7/16	304 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene FDA grade	1
T23R10A	Quote Required	30 In Stock	$6.70/each	EA	domnick hunter	Food and beverage	Wound	N/A	5 gal/min per 10 inch	Polypropylene Industrial grade	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	10	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene Industrial grade	5
T8R10A	Quote Required	24 In Stock	$5.68/each	EA	domnick hunter	Food and beverage	Wound	N/A	5 gal/min per 10 inch	Polypropylene Industrial grade	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	10	2 7/16	Polypropylene	STANDARD PACKAGING	No gasket	No end treatment	No core cover	Polypropylene Industrial grade	100
WC23R30S	Quote Required	Quote Required	$32.98/each	EA	domnick hunter	Inks, paints and coatings	Wound	N/A	5 Gal/min per 10 inch	White cotton	No end cap	Clarification/Prefiltration/Polishing	1	Industrial Process Filtration Division	DOE	30	2 7/16	316 Stainless steel	STANDARD PACKAGING	No gasket	No end treatment	No core cover	White cotton	5
