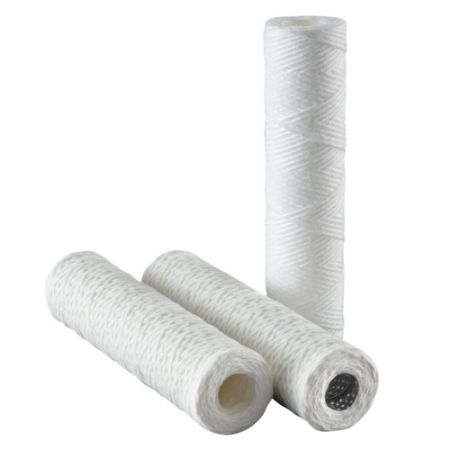

Fulflo Honeycomb Ultrafine Wound Filter Cartridges | Designed for critical 0.5 micron filtration applications
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker has been a leader in filter media innovation and performance since we first invented the Honeycomb™ Filter Tube over 65 years ago. Parker has the world’s largest manufacturing capacity for wound cartridges, offering superior quality along with technical, engineering and marketing support.
Effective removal ratings at nominal 90% efficiency from 0.5μm to 150μm.
Features/Benefits
• A broad range of media provide excellent compatibility with a variety of organic solvents, animal, petroleum and vegetable oils
• Optional core covers and end treatments assure fiber migration control
• Multiple length cartridges minimize change-out time, eliminate spacers and are available to fi t competitive filter vessels
• FDA grade polypropylene (DOE only) cartridges certified to ANSI/ NSF61 standard for contact with drinking water components
• Continuous strand winding geometry provides performance consistency
• One-piece metal extended center core option eliminates the need for cartridge guides in all competitive and Fulflo® multi-cartridge vessels
• A special snap-in extender is available for polypropylene cores
• Cotton, polypropylene, nylon and polyester materials are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21
• O-ring/end cap options available
• ISO9001:2008 registered company
Applications
• Filtration of Oxidizing Agents
• Petroleum Oil Filtration
• Concentrated Filtration
• Photo Filtration
• Alkalies Solution Filtration
• Potable Liquid Filtration
• Amines Filtration
• Dilute Acid Filtration
• Water & Alkalie Filtration
• Prefilter for Mineral Acids Membranes
• Organic Acids & Solvent Filtration
Read More...Effective removal ratings at nominal 90% efficiency from 0.5μm to 150μm.
Features/Benefits
• A broad range of media provide excellent compatibility with a variety of organic solvents, animal, petroleum and vegetable oils
• Optional core covers and end treatments assure fiber migration control
• Multiple length cartridges minimize change-out time, eliminate spacers and are available to fi t competitive filter vessels
• FDA grade polypropylene (DOE only) cartridges certified to ANSI/ NSF61 standard for contact with drinking water components
• Continuous strand winding geometry provides performance consistency
• One-piece metal extended center core option eliminates the need for cartridge guides in all competitive and Fulflo® multi-cartridge vessels
• A special snap-in extender is available for polypropylene cores
• Cotton, polypropylene, nylon and polyester materials are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21
• O-ring/end cap options available
• ISO9001:2008 registered company
Applications
• Filtration of Oxidizing Agents
• Petroleum Oil Filtration
• Concentrated Filtration
• Photo Filtration
• Alkalies Solution Filtration
• Potable Liquid Filtration
• Amines Filtration
• Dilute Acid Filtration
• Water & Alkalie Filtration
• Prefilter for Mineral Acids Membranes
• Organic Acids & Solvent Filtration
| Action | Part No. | Availability | Partner Available | Price | Specifications Met | Inside Diameter | Media | Outside Diameter | Function | Flow Rate | Filter Construction | Micron Rating | Division | Industry | Brand | End Cap Configuration | Seal Material | Core Cover Material | Length (inch) | Options | Core Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C10A | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 10 | FDA Grade Cotton Fiber | Polypropylene | ||
| C10G | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 10 | FDA Grade Cotton Fiber | 304 Stainless steel | ||
| C10-SC-N | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | 226 O-Ring/Closed | Buna-N | Glass paper with polyester overlay | 10 | FDA Grade Cotton Fiber | Tinned steel | ||
| C19-4S | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 19 1/2 | FDA Grade Cotton Fiber | 316 Stainless steel | ||
| C20A | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 20 | FDA Grade Cotton Fiber | Polypropylene | ||
| C20G | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 20 | FDA Grade Cotton Fiber | 304 Stainless steel | ||
| C20S | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 20 | FDA Grade Cotton Fiber | 316 Stainless steel | ||
| C30A | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 30 3/16 | FDA Grade Cotton Fiber | Polypropylene | ||
| C30A-TB-V | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | 222 O-Ring/Polypro spring | Viton | Glass paper with polyester overlay | 30 3/16 | FDA Grade Cotton Fiber | Polypropylene | ||
| C30A-TC-N | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | 222 O-ring/Flat cap | Buna-N | Glass paper with polyester overlay | 30 3/16 | FDA Grade Cotton Fiber | Polypropylene | ||
| C30G | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 30 3/16 | FDA Grade Cotton Fiber | 304 Stainless steel | ||
| C30SXC | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE with Core Extender | No gasket | Glass paper with polyester overlay | 30 3/16 | FDA Grade Cotton Fiber | 316 Stainless steel | ||
| C40 | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 40 3/16 | FDA Grade Cotton Fiber | Tinned steel | ||
| C40G | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 40 3/16 | FDA Grade Cotton Fiber | 304 Stainless steel | ||
| C9-4S | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 9 7/8 | FDA Grade Cotton Fiber | 316 Stainless steel | ||
| C9-4-SC-N | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Cotton | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | 226 O-Ring/Closed | Buna-N | Glass paper with polyester overlay | 9 7/8 | FDA Grade Cotton Fiber | Tinned steel | ||
| E10S | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Rayon | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 10 | FDA Grade Rayon | 316 Stainless steel | ||
| M10A | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Polypropylene | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 10 | FDA Grade Polypropylene Fiber | Polypropylene | ||
| M10A-TC-S | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Polypropylene | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | 222 O-ring/Flat cap | S7442 | Glass paper with polyester overlay | 10 | FDA Grade Polypropylene Fiber | Polypropylene | ||
| M10G | Quote Required | TBD | FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21 | 1 | Polypropylene | 2-7/16 | Clarification/Prefiltration/Polishing | 3.0 Gal/min per 10 inch | Wound | 0.5 | Industrial Process Filtration Division | Food and beverage | domnick hunter | DOE | No gasket | Glass paper with polyester overlay | 10 | FDA Grade Polypropylene Fiber | 304 Stainless steel |
