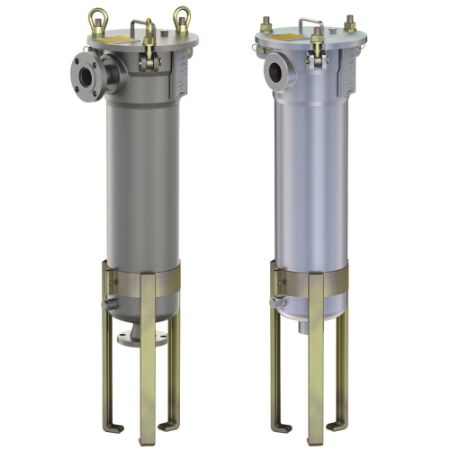

FULFLO FE MULTI-CARTRIDGE FILTER VESSEL | CARBON STEEL, 304L & 316L STAINLESS STEEL, ASME CODE DESIGN FOR LIQUID/GAS FILTRATION
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Fulflo® FE multi-cartridge filter vessels meet a broad range of liquid and gas filtration applications. It comes with standard zinc plated bolts and legs for corrosion resistance but is also offered with stainless steel options. Wall mounting brackets are available as well. The FE filter vessels accommodate Double-Open-End (DOE) and Single-Open-End (SOE) filter cartridges in 10 in., 20 in., and 30 in. lengths.
Features/Benefits
• Single O-ring design closure assures quick, positive cover sealing
• Swing bolts with eyenuts for fast, easy opening and closing of cover
• Dual purpose cartridge seats for use with DOE and 2-222 O-ring SOE cartridges
• ASME Code UM stamp is standard (U stamp is optional)
• Threaded vent & drain connections
• Adjustable leg height
• Threaded or flanged inlet and outlet
• Side inlet cover opens without disconnecting piping
• Side inlet, bottom outlet, and crevice-free welded design provide a smooth interior for easy wash-out and cleaning
• Available in carbon steel, 304L & 316L stainless steel
Applications
• Portable Water Filtration
• Process Water Filtration
• Coatings Filtration
• Lubricant Filtration
• Coolant Filtration
• Cutting Oil Filtration
• Solvent Filtration
Read More...Features/Benefits
• Single O-ring design closure assures quick, positive cover sealing
• Swing bolts with eyenuts for fast, easy opening and closing of cover
• Dual purpose cartridge seats for use with DOE and 2-222 O-ring SOE cartridges
• ASME Code UM stamp is standard (U stamp is optional)
• Threaded vent & drain connections
• Adjustable leg height
• Threaded or flanged inlet and outlet
• Side inlet cover opens without disconnecting piping
• Side inlet, bottom outlet, and crevice-free welded design provide a smooth interior for easy wash-out and cleaning
• Available in carbon steel, 304L & 316L stainless steel
Applications
• Portable Water Filtration
• Process Water Filtration
• Coatings Filtration
• Lubricant Filtration
• Coolant Filtration
• Cutting Oil Filtration
• Solvent Filtration
| Action | Part No. | Availability | Partner Available | Price | Division | Brand | Industry | Function | Maximum Operating Temperature | Maximum Operating Pressure | Seal Material | Media | Flow Rate | Filter Construction | Specifications Met | Materials of Construction | Connection Type | Options | Quantity | Materials of Construction | Length | Connection Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4LFE6-1-2 | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | NPT | Zinc plated carbon steel legs | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2F | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | Zinc plated carbon steel legs | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2F-SB | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | 316 stainless steel cover bolts | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2F-SL | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | 304 stainless steel legs | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2F-SS | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | Stainless steel legs & bolts | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2F-W | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | Wall Mounted (No legs) | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2F-WSB | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 10.3 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | Wall Mounted (No legs) / Stainless steel bolting | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2-SB | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | NPT | 316 stainless steel cover bolts | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2-SL | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | NPT | 304 stainless steel legs | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2-SS | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | NPT | Stainless steel legs & bolts | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2-W | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | NPT | Wall Mounted (No legs) | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-1-2-WSB | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 30 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | NPT | Wall Mounted (No legs) / Stainless steel bolting | 6 cartridges | 304L Stainless Steel | 10 inch cartridge | 2 | ||
| 4LFE6-2-2 | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 60 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | NPT | Zinc plated carbon steel legs | 6 cartridges | 304L Stainless Steel | 20 inch cartridge | 2 | ||
| 4LFE6-2-2F | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 60 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | Zinc plated carbon steel legs | 6 cartridges | 304L Stainless Steel | 20 inch cartridge | 2 | ||
| 4LFE6-2-2F-SB | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 60 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | 316 stainless steel cover bolts | 6 cartridges | 304L Stainless Steel | 20 inch cartridge | 2 | ||
| 4LFE6-2-2F-SL | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 60 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | 304 stainless steel legs | 6 cartridges | 304L Stainless Steel | 20 inch cartridge | 2 | ||
| 4LFE6-2-2F-SS | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 60 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | Stainless steel legs & bolts | 6 cartridges | 304L Stainless Steel | 20 inch cartridge | 2 | ||
| 4LFE6-2-2F-W | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 60 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | Wall Mounted (No legs) | 6 cartridges | 304L Stainless Steel | 20 inch cartridge | 2 | ||
| 4LFE6-2-2F-WSB | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 60 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | ANSI 150 lb. flange | Wall Mounted (No legs) / Stainless steel bolting | 6 cartridges | 304L Stainless Steel | 20 inch cartridge | 2 | ||
| 4LFE6-2-2-SB | Quote Required | TBD | Industrial Process Filtration Division | domnick hunter | Inks, Paints and Coatings | Clarification/Prefiltration/Polishing | 450 | 150 | Buna-N (250 F max.) | Stainless Steel | 60 | Multi-Cartridge Filter Vessel | ASME Sec. VIII, Div. 1, UM stamp | 304L Stainless Steel | NPT | 316 stainless steel cover bolts | 6 cartridges | 304L Stainless Steel | 20 inch cartridge | 2 |
