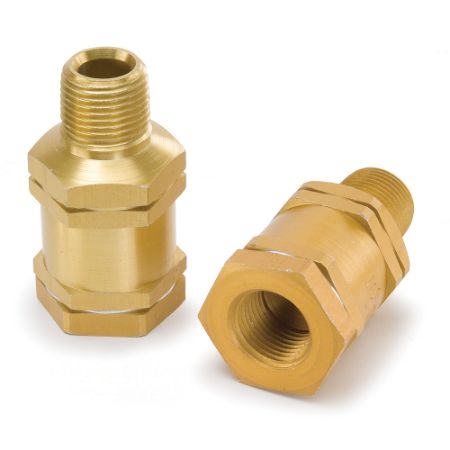

Fuel Line Check Valves, Swing Type - 2600 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
2600 Series In line, Swing Check Valves have a spring-loaded, trapdoor style valve. The valve opens when system pressure approaches 1/2 psi to permit full flow with low pressure drop. As system pressure is relieved, the valve closes, retaining fluids upstream.
These in line check valves are designed with a low crack pressure spring especially for diesel and gasoline engine fuel lines. The 2600 Series Hydraulic Swing Check Valves are available in two sizes and can be used in low pressure air, liquid or gas systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8”
• Material: Aluminum
• Port Ends: Male NPTF
Markets:
• Construction
• Mobile Equipment
• Truck
Features/Benefits:
• Lightweight corrosion resistant aluminum construction
• Swing style valve allows full flow with low pressure drop
• 1/2 psi maximum crack pressure for use in low pressure air, liquid, or gas systems
Applications:
• Diesel and gasoline engine fuel lines
• Externally mounted oil filters and coolers
• Transmission fluid lubrication lines
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Division | Maximum Operating Pressure | Maximum Operating Temperature | Body Material | Configuration | Valve Type | Connection Size | Dimensional Weight | Mounting Type | Seat Material | Actuation Type | Connection Type | Cracking Pressure | Maximum Flow Rate | Seal Material | Inlet Port Size (inch) | Outlet Port Size (inch) | Inlet Port Connection Type | Outlet Port Connection Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2600 | 16 In Stock | 38 In Stock | $68.32 | EA | -40 °F | Quick Coupling Division | 250 psi | 200 °F | Aluminum | n/a | Swing-trap Door | 1/4"-18 inch | 0.044514388489208634 lb | Threaded | Nitrile | Mechanical | Male NPT to Female NPT | 1/2 psi | 6 Gal/min | Nitrile | 1/4 - 18 NPTF | 1/4 - 18 NPTF | Female NPTF | Male NPTF | |
| 2625 | Quote Required | 68 In Stock | $77.30 | EA | -40 °F | Quick Coupling Division | 250 psi | 400 °F | Aluminum | n/a | Swing-trap Door | 3/8"-18 NPTF inch | 0.044514388489208634 lb | Threaded | Fluorocarbon | Mechanical | Male NPT to Female NPT | 1/2 psi | 6 Gal/min | Fluorocarbon | 3/8 - 18 NPTF | 3/8 - 18 NPTF | Female NPTF | Male NPTF | |
| 2650 | 26 In Stock | 131 In Stock | $63.62 | EA | -40 °F | Quick Coupling Division | 250 psi | 200 °F | Aluminum | n/a | Swing-trap Door | 3/8"-18 NPTF inch | 0.03998800959232614 lb | Threaded | Nitrile | Mechanical | Male NPT to Female NPT | 1/2 psi | 6 Gal/min | Nitrile | 3/8 - 18 NPTF | 3/8 - 18 NPTF | Female NPTF | Male NPTF | |
| 2676 | Quote Required | TBD | -40 °F | Quick Coupling Division | 250 psi | 400 °F | Aluminum | n/a | Swing-trap Door | NPTF inch | Threaded | Fluorocarbon | Mechanical | Male NPT to Female NPT | 1/2 psi | 6 Gal/min | Fluorocarbon | 1/4 - 18 NPTF | 1/4 - 18 NPTF | Female NPTF | Male NPTF |
