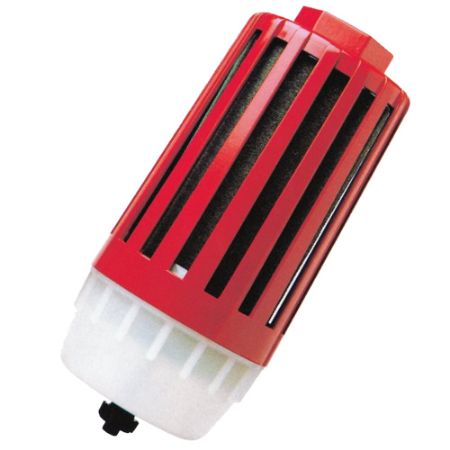

FS Series Exhaust Silencer/Mist Eliminator

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker Zander exhaust silencers are the result of careful construction and manufacturing. They can be used in all industrial applications where compressed air is released from atmospheric pressure. With this tension release, solid particles, condensation and oil content represent a high burden at workplaces, together with the noise development during expansion. Parker Zander filter silencers reduce the noise level by approx. 40 db(A) and achieve an effective degree of filtration greater than 99,99%. They come ready to use and are applicable for volume flows up to 180m³/h with maximum operating temperatures of 100° C.

Features
• Noise level reduction by approx. 40 db(A)
• Volume flows up to 180m³/h @ 1 barg

Benefits
• Clean and quiet pneumatic exhausts
• Safe working environment and exceeding international health and safety legislation
• Protection from dangerous contaminants

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Industry	Operating Pressure	Width	Height	Brand	Compatible Element	Materials of Construction	Application	Division	Connection Type	Product Series	Technology	Division	Weight	Product Type	Flow Rate	Port Connection
FS3	Quote Required	538 In Stock	$1.45	EA	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	232.0	90.0 mm	7.09 inch	Parker	LS3/ZR	Housing top: Aluminium<br/><br/>Housing base and valve: Polyproylene	Compressed Air and Nitrogen Gas Applications	Gas Separation and Filtration Division EMEA	BSPP	FS Series	Filtration	Gas Separation and Filtration Division EMEA	1 kg	Oil Eliminator/Exhaust Silencer	100 m³/h @ 1 bara (59 cfm @ 14.5 psia)	G½
FS3-N	Quote Required	Quote Required	TBD		Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	16.0	90.0 mm	7.09 inch	Parker	LS3/ZR	Housing top: Aluminium<br/><br/>Housing base and valve: Polyproylene	Compressed Air and Nitrogen Gas Applications	Gas Separation and Filtration Division EMEA	NPT	FS Series	Filtration	Gas Separation and Filtration Division EMEA	1 kg	Oil Eliminator/Exhaust Silencer	100 m³/h @ 1 bara (59 cfm @ 14.5 psia)	½" NPT
FS4	Quote Required	672 In Stock	$1.91	EA	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	232.0	3.54 inch	7.09 inch	Parker	LS3/ZR	Housing top: Aluminium<br/><br/>Housing base and valve: Polyproylene	Compressed Air and Nitrogen Gas Applications	Gas Separation and Filtration Division EMEA	BSPP	FS Series	Filtration	Gas Separation and Filtration Division EMEA	2.2 lb	Oil Eliminator/Exhaust Silencer	100 m³/h @ 1 bara (59 cfm @ 14.5 psia)	G¾
FS4-N	Quote Required	Quote Required	$257.45	EA	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	232.0	3.54 inch	7.09 inch	Parker	LS3/ZR	Housing top: Aluminium<br/><br/>Housing base and valve: Polyproylene	Compressed Air and Nitrogen Gas Applications	Gas Separation and Filtration Division EMEA	NPT	FS Series	Filtration	Gas Separation and Filtration Division EMEA	2.2 lb	Oil Eliminator/Exhaust Silencer	100 m³/h @ 1 bara (59 cfm @ 14.5 psia)	¾" NPT
FS5	Quote Required	Quote Required	TBD		Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	16.0	4.33 inch	252.0 mm	Parker	LS5/ZR	Housing top: Aluminium<br/><br/>Housing base and valve: Polyproylene	Compressed Air and Nitrogen Gas Applications	Gas Separation and Filtration Division EMEA	BSPP	FS Series	Filtration	Gas Separation and Filtration Division EMEA	5.51 lb	Oil Eliminator/Exhaust Silencer	180 m³/h @ 1bara (106 cfm @ 14.5 psia)	G1
FS5-N	Quote Required	Quote Required	TBD		Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	232.0	4.33 inch	9.92 inch	Parker	LS5/ZR	Housing top: Aluminium<br/><br/>Housing base and valve: Polyproylene	Compressed Air and Nitrogen Gas Applications	Gas Separation and Filtration Division EMEA	NPT	FS Series	Filtration	Gas Separation and Filtration Division EMEA	5.51 lb	Oil Eliminator/Exhaust Silencer	180 m³/h @ 1bara (106 cfm @ 14.5 psia)	1" NPT
LS3/ZR	Quote Required	Quote Required	$175.75	EA	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	232.0			Parker			Compressed Air and Nitrogen Gas Applications	Gas Separation and Filtration Division EMEA	BSPP	FS Series	Filtration	Gas Separation and Filtration Division EMEA		Replacement Element (FS3 & FS4)	100 m³/h @ 1 bara (59 cfm @ 14.5 psia)	n/a
LS5/ZR	Quote Required	Quote Required	TBD		Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	16.0			Parker			Compressed Air and Nitrogen Gas Applications	Gas Separation and Filtration Division EMEA	BSPP	FS Series	Filtration	Gas Separation and Filtration Division EMEA		Replacement Element (FS5)	180 m³/h @ 1 bara (106 cfm @ 14.5 psia)	n/a
