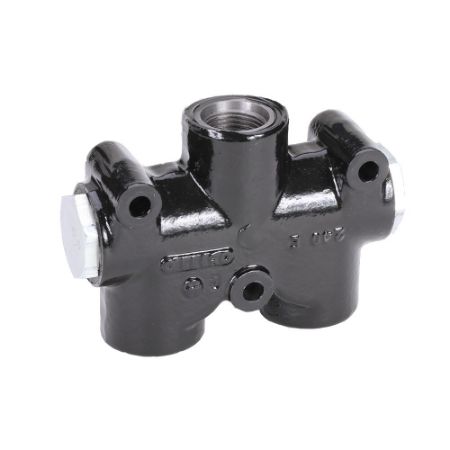

Flow Divider – PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s PD and PDC accessory valves split the flow in three ratios between the two hydraulic lines. Flow through the series PD flow divider cannot be reversed. Flow through the PDC flow divider can be combined in the reverse direction and synchronized in both directions.
Series PD and PDC flow dividers will divide the inlet flow to ±10% of the specified outlet flow when used within recommended capacities. In addition, many actuators can displace fluid different from the ratio of the divider.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Pressure Compensated
• High tensile cast iron body
• Cross drilled spool provides accurate metering
Applications:
• Suitable for various mobile applications
Read More...Series PD and PDC flow dividers will divide the inlet flow to ±10% of the specified outlet flow when used within recommended capacities. In addition, many actuators can displace fluid different from the ratio of the divider.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Pressure Compensated
• High tensile cast iron body
• Cross drilled spool provides accurate metering
Applications:
• Suitable for various mobile applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Mounting Type | Maximum Operating Pressure | Flow Rate | Body Material | Weight | Division | Mounting Type | Flow Rate | Ratio | Port Size | Maximum Operating Pressure | Maximum Flow Rate | Configuration | Seal Material | Maximum Operating Temperature | Function | Ratio | Connection Type | Connection Size | Minimum Operating Temperature | Actuation Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PD-10-50 | Quote Required | $330.75 | EA | In-Line | 2500 psi | 5-20 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 5-20 GPM | 50/50 | SAE-10 | 2500 PSI | ||||||||||||
| PD-10-60 | Quote Required | TBD | In-Line | 2500 psi | 5-20 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 5-20 GPM | 60/40 | SAE-10 | 2500 PSI | |||||||||||||
| PD-12-50 | Quote Required | $330.75 | EA | In-Line | 2500 psi | 20-35 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 20-35 GPM | 50/50 | SAE-12 | 2500 PSI | ||||||||||||
| PD-12-60 | Quote Required | $330.75 | EA | In-Line | 2500 psi | 20-35 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 20-35 GPM | 60/40 | SAE-12 | 2500 PSI | ||||||||||||
| PD-12-70 | Quote Required | $330.75 | EA | In-Line | 2500 psi | 20-35 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 20-35 GPM | 70/30 | SAE-12 | 2500 PSI | ||||||||||||
| PD-50-50 | Quote Required | 8 In Stock | $330.75 | EA | In-Line | 2000 psi | 5-20 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 5-20 GPM | 50/50 | 1/2" NPT | 2500 PSI | n/a | Flow Divider | Nitrile | +200 °F | Flow Divider | 50/50 | NPT | 1/2" | -40 °F | Hydraulic Pressure | |
| PD-50-60 | Quote Required | TBD | In-Line | 2000 psi | 5-20 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 5-20 GPM | 60/40 | 1/2" NPT | 2500 PSI | n/a | Flow Divider | Nitrile | +200 °F | Flow Divider | 60/40 | NPT | 1/2" | -40 °F | Hydraulic Pressure | |||
| PD-50-70 | Quote Required | TBD | In-Line | 2000 psi | 5-20 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 5-20 GPM | 70/30 | 1/2" NPT | 2500 PSI | n/a | Flow Divider | Nitrile | +200 °F | Flow Divider | 70/30 | NPT | 1/2" | -40 °F | Hydraulic Pressure | |||
| PD-75-50 | Quote Required | $330.75 | EA | In-Line | 2000 psi | 20-35 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 20-35 GPM | 50/50 | 3/4" NPT | 2500 PSI | n/a | Flow Divider | Nitrile | +200 °F | Flow Divider | 50/50 | NPT | 3/4" | -40 °F | Hydraulic Pressure | ||
| PD-75-60 | Quote Required | TBD | In-Line | 2000 psi | 20-35 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 20-35 GPM | 60/40 | 3/4" NPT | 2500 PSI | n/a | Flow Divider | Nitrile | +200 °F | Flow Divider | 60/40 | NPT | 3/4" | -40 °F | Hydraulic Pressure | |||
| PD-75-70 | Quote Required | TBD | In-Line | 2000 psi | 20-35 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 20-35 GPM | 70/30 | 3/4" NPT | 2500 PSI | n/a | Flow Divider | Nitrile | +200 °F | Flow Divider | 70/30 | NPT | 3/4" | -40 °F | Hydraulic Pressure | |||
| PDC-10-50 | Quote Required | TBD | In-Line | 2500 psi | 5-20 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 5-20 GPM | 50/50 | SAE-10 | 2500 PSI | n/a | Flow Divider/Combiner | Nitrile | +200 °F | Flow Divider | 50/50 | SAE | #10 | -40 °F | Hydraulic Pressure | |||
| PDC-12-50 | Quote Required | 5 In Stock | $431.25 | EA | In-Line | 2500 psi | 20-35 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 20-35 GPM | 50/50 | SAE-12 | 2500 PSI | n/a | Flow Divider/Combiner | Nitrile | +200 °F | Flow Divider | 50/50 | SAE | #12 | -40 °F | Hydraulic Pressure | |
| PDC-50-50 | Quote Required | $431.25 | EA | In-Line | 2000 psi | 5-20 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 5-20 GPM | 50/50 | 1/2" NPT | 2500 PSI | n/a | Flow Divider/Combiner | Nitrile | +200 °F | Flow Divider | 50/50 | SAE | 1/2" | -40 °F | Hydraulic Pressure | ||
| PDC-75-50 | Quote Required | $431.25 | EA | In-Line | 2000 psi | 20-35 Gal/min | High Strength Cast Iron | 7 lb | Hydraulic Valve Systems Division | In-line | 20-35 GPM | 50/50 | 3/4" NPT | 2500 PSI | n/a | Flow Divider/Combiner | Nitrile | +200 °F | Flow Divider | 50/50 | NPT | 3/4" | -40 °F | Hydraulic Pressure |
