Flow Control Valve - 337 Series

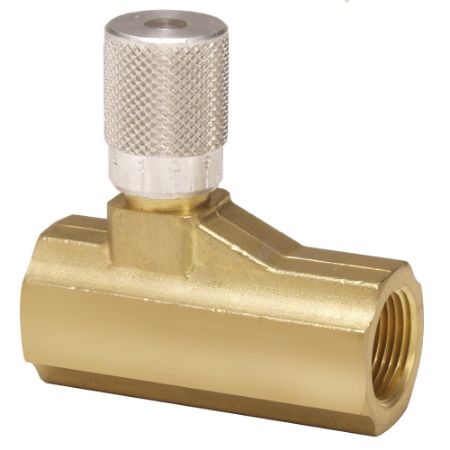

Picture for category Flow Control Valve - 337 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker 337 Series Flow Control Valves efficiently meter flow of air in one direction while allowing free flow in the reverse direction to ensure maximum productivity. The plunger in these valves is a fine tapered needle, which provides precise flow control even at low flow rates. The perimeter of the adjustment knob features numerical micrometer position markings, providing a visual indication of the flow controls settings. Once the desired flow is selected, a set screw can be tightened to maintain the settings. Due to the light spring on the return check, the 337 flow controls have a 1 to 2 psig cracking pressure. Extended temperature versions up to 300 degrees F are available as specials.

Markets:
• Factory Automation
• Heavy Industries

Features/Benefits:
• Precise Low-Flow Control
• Heavy duty brass construction
• Micrometer visual set points

Applications:
• Cylinder speed control

Read More...
View as Grid List
Sort by
Display per page
ActionPart No.AvailabilityPartner AvailablePriceUOMOperating PressureSeal MaterialPort TypeProduct TypeNeedle MaterialFlow RatePort ConnectionLubricantDivisionOperation TypeOperating TemperatureBody MaterialOptionsMediaMounting TypeFlow CoefficientPort SizePort TypePort Size (inch)
003371000
Quote Required
47 In Stock
$60.33/each
EA0 to 250UrethaneNPTFlow ControlStainless Steel15 to 140 SCFM (metered)Female to FemaleNonePneumatic DivisionKnob with Micrometer Position-18 to 82BrassExtended Temperature VersionAirInline0.28 to 2.62 Cv (metered)1/8NPT1/8
003371001
47 In Stock
118 In Stock
$76.28/each
EA0 to 250UrethaneNPTFlow ControlStainless Steel15 to 140 SCFM (metered)Female to FemaleNonePneumatic DivisionKnob with Micrometer Position-18 to 82BrassExtended Temperature VersionAirInline0.28 to 2.62 Cv (metered)1/4NPT1/4
003371002
4 In Stock
49 In Stock
$100.80/each
EA0 to 250UrethaneNPTFlow ControlStainless Steel15 to 140 SCFM (metered)Female to FemaleNonePneumatic DivisionKnob with Micrometer Position-18 to 82BrassExtended Temperature VersionAirInline0.28 to 2.62 Cv (metered)3/8NPT3/8
003371003
8 In Stock
39 In Stock
$135.93/each
EA0 to 250UrethaneNPTFlow ControlStainless Steel15 to 140 SCFM (metered)Female to FemaleNonePneumatic DivisionKnob with Micrometer Position-18 to 82BrassExtended Temperature VersionAirInline0.28 to 2.62 Cv (metered)1/2NPT1/2
003371004
Quote Required
28 In Stock
$181.74/each
EA0 to 250UrethaneNPTFlow ControlStainless Steel15 to 140 SCFM (metered)Female to FemaleNonePneumatic DivisionKnob with Micrometer Position-18 to 82BrassExtended Temperature VersionAirInline0.28 to 2.62 Cv (metered)3/4NPT3/4
00337G1000
Quote Required
$61.00/each
EA0 to 250UrethaneBSPPFlow ControlStainless Steel15 to 140 SCFM (metered)Female to FemaleNonePneumatic DivisionKnob with Micrometer Position-18 to 82BrassExtended Temperature VersionAirInline0.28 to 2.62 Cv (metered)1/8BSPP1/8
00337G1001
Quote Required
$76.28/each
EA0 to 250UrethaneBSPPFlow ControlStainless Steel15 to 140 SCFM (metered)Female to FemaleNonePneumatic DivisionKnob with Micrometer Position-18 to 82BrassExtended Temperature VersionAirInline0.28 to 2.62 Cv (metered)1/4BSPP1/4
