Flange Halves

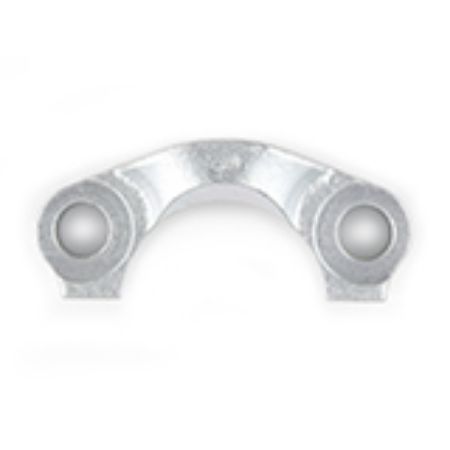

Picture for category Flange Halves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Flange Halves are a four bolt, split flange system with numerous end configurations available to meet your specific needs. The majority of our flanges are manufactured from forged steel with a limited amount machined from bar stock. The forged construction provides higher strength and durability to provide long lasting performance in the application. Parker flanges and flange kits are designed to meet or exceed SAE J518 and ISO 6162.
Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personal Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
• Automotive

Features/Benefits:
• Forged steel construction for durability and longer life
• Numerous end configurations available
Applications:
• Petroleum base hydraulic fluids and lubricating oils

Read More...
View as Grid List
Sort by
Display per page
ActionPart No.AvailabilityPartner AvailablePriceUOMDivisionFlange SizeDIN Flange SizeProduct StyleFlange Size (inch)Maximum Working Pressure (psi)Din Flange Size (inch)
50H-20
Quote Required
Quote Required
$52.75
EAHose Products Division1-1/4 inchn/aCode 61 Flange Half 5000 Psi1-1/45,000na
50H-24
Quote Required
Quote Required
TBD
Hose Products Division1-1/2 inchn/aCode 61 Flange Half 5000 Psi1-1/25,000na
50H-32
Quote Required
Quote Required
$81.76
EAHose Products Division2 inchn/aCode 61 Flange Half 5000 Psi25,000na
51H-12
Quote Required
Quote Required
TBD
Hose Products Division3/4 inchn/aCode 61 Flange Half3/45,000na
51H-16
Quote Required
40 In Stock
$8.53
EAHose Products Division1 inchn/aCode 61 Flange Half15,000na
51H-20
Quote Required
65 In Stock
$11.03
EAHose Products Division1-1/4 inchn/aCode 61 Flange Half1-1/44,000na
51H-24
Quote Required
14 In Stock
$14.17
EAHose Products Division1-1/2 inchn/aCode 61 Flange Half1-1/23,000na
51H-32
Quote Required
17 In Stock
$16.48
EAHose Products Division2 inchn/aCode 61 Flange Half23,000na
51H-40
Quote Required
4 In Stock
$31.28
EAHose Products Division2-1/2 inchn/aCode 61 Flange Half2-1/22,500na
51H-8
Quote Required
Quote Required
TBD
Hose Products Division1/2 inchn/aCode 61 Flange Half1/25,000na
Flange Halves
Quote Required
Quote Required
TBD
Hose Products Divisionn/a24Code 62 Flange Half DIN (ISO)na6,00024
FLANGE HALVES
Quote Required
Quote Required
TBD
Hose Products Divisionn/a24Code 62 Flange Half DIN (ISO)na6,00024
HFH-12
Quote Required
Quote Required
TBD
Hose Products Division3/4 inchn/aCode 62 Flange Half3/46,000na
HFH-16
Quote Required
Quote Required
TBD
Hose Products Division1 inchn/aCode 62 Flange Half16,000na
HFH-20
Quote Required
Quote Required
TBD
Hose Products Division1-1/4 inchn/aCode 62 Flange Half1-1/46,000na
HFH-24
Quote Required
Quote Required
TBD
Hose Products Division1-1/2 inchn/aCode 62 Flange Half1-1/26,000na
HFH-32
Quote Required
Quote Required
TBD
Hose Products Division2 inchn/aCode 62 Flange Half26,000na
M2H-16
Quote Required
Quote Required
TBD
Hose Products Divisionn/a16 inchCode 62 Flange Half DIN (ISO)na6,00016
M2H-20
Quote Required
Quote Required
TBD
Hose Products Divisionn/a20 inchCode 62 Flange Half DIN (ISO)na6,00020
