Field Attachable Fittings - 51R Series

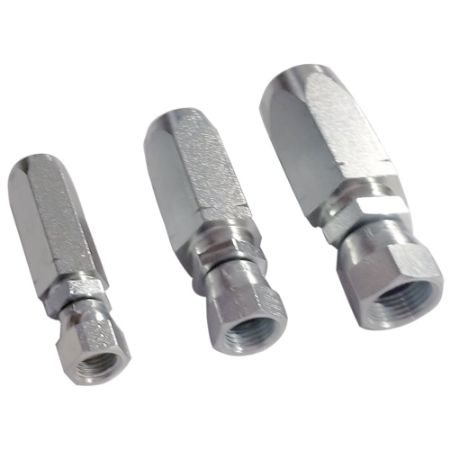

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 51R Series field-attachable fittings are used with 510D and 518D 100R7 hoses from Parflex division. Unlike crimp fittings, Parker’s Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. Please note the couplings on these fittings are only intended for use on hoses that have not previously been in service.
Markets:
• Construction
• Aerial Lift
• Machine Tool
Features/Benefits:
• No crimper needed for installation
• Optional deep-well socket assembly allowing for quick, power assist assembly
• Full pressure and temperature rating for 100R7 (510D/518D) hoses
Applications:
• Medium pressure hydraulic service
Read More...Markets:
• Construction
• Aerial Lift
• Machine Tool
Features/Benefits:
• No crimper needed for installation
• Optional deep-well socket assembly allowing for quick, power assist assembly
• Full pressure and temperature rating for 100R7 (510D/518D) hoses
Applications:
• Medium pressure hydraulic service
| Action | Part No. | Availability | Partner Available | Price | UOM | Shape | Materials of Construction | Division | Connection Size | Length | Port Size | Hose Inside Diameter | Fitting Type | Connection Type | Hose I.D. (inch) | Product Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20351R-4-3 | Quote Required | 68 In Stock | $37.06/each | EA | Straight | Steel | Parflex Division | 7/16"-20 inch Thread | 2.54 inch | 0.25 inch | 5 mm | Field Attachable | SAE Thread | 0.1875" | Male JIC 37° Rigid | |
| 20351R-4-4 | 19 In Stock | 119 In Stock | $39.20/each | EA | Straight | Steel | Parflex Division | 7/16"-20 inch Thread | 2.63 inch | 0.25 inch | 6 mm | Flare | SAE Thread | 0.25" | Male JIC 37° Rigid | |
| 20351R-6-6 | 71 In Stock | 96 In Stock | $49.54/each | EA | Straight | Steel | Parflex Division | 9/16"-18 inch Thread | 2.61 inch | 0.375 inch | 10 mm | Field Attachable | SAE Thread | 0.375" | Male JIC 37° Rigid | |
| 20351R-8-8 | 18 In Stock | 93 In Stock | $60.62/each | EA | Straight | Steel | Parflex Division | 3/4"-16 inch Thread | 3.08 inch | 0.5 inch | 13 mm | Field Attachable | SAE Thread | 0.5" | Male JIC 37° Rigid | |
| 20651R-4-3 | 5 In Stock | 76 In Stock | $36.25/each | EA | Straight | Steel | Parflex Division | 7/16"-20 inch Thread | 2.56 inch | 6 mm | 5 mm | Field Attachable | SAE Thread | 0.1875" | SAE JIC 37° Swivel | |
| 20651R-4-4 | 18 In Stock | 280 In Stock | $37.59/each | EA | Straight | Steel | Parflex Division | 7/16"-20 inch Thread | 2.65 inch | 6 mm | 6 mm | Field Attachable | SAE Thread | 0.25" | SAE JIC 37° Swivel | |
| 20651R-6-6 | 95 In Stock | 199 In Stock | $44.88/each | EA | Straight | Steel | Parflex Division | 9/16"-18 inch Thread | 2.93 inch | 10 mm | 10 mm | Flare | SAE Thread | 0.375" | SAE JIC 37° Swivel | |
| 20651R-8-8 | 39 In Stock | 216 In Stock | $59.09/each | EA | Straight | Steel | Parflex Division | 3/4"-16 inch Thread | 3.3 inch | 0.5 inch | 13 mm | Field Attachable | SAE Thread | 0.5" | SAE JIC 37° Swivel | |
| 2JS51-6-6 | Quote Required | TBD | EA | Straight | Steel | Parflex Division | 9/16"-18 inch Thread | 2.83 inch | 0.375 inch | 10 mm | UNF | 0.375" | Seal-lok Female Swivel Straight - Long | |||
| 2JS51-8-8 | Quote Required | TBD | EA | Straight | Steel | Parflex Division | 3/4"-16 inch Thread | 3.13 inch | 0.5 inch | 13 mm | UNF | 0.5" | Seal-lok Female Swivel Straight - Long | |||
| 2JS51R-6-6 | Quote Required | 20 In Stock | $127.42/each | EA | Straight | Steel | Parflex Division | 9/16"-18 inch Thread | 2.83 inch | 0.375 inch | 10 mm | Field Attachable | SAE Thread | 0.375" | Seal-lok Female Swivel Straight - Long |
