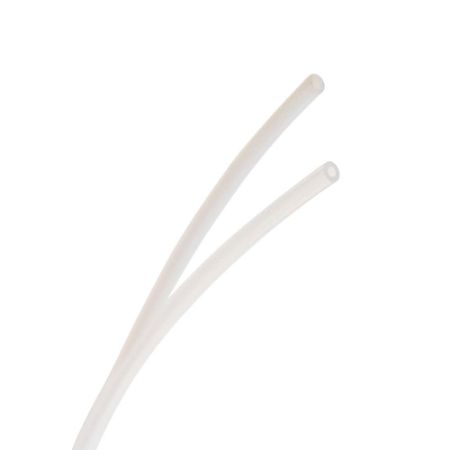

FEP Tubing
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s FEP tubing features a low refractive index, making it ideal for applications where operators must visually monitor materials passing through the tube. It is the clearest fluoropolymer tubing available and Parker uses a high molecular weight FEP resin that offers the best stress crack resistance. FEP tubing is used in paint spray applications making for easy color coding of the paint being delivered to the spray units as the color of the paint shows through. It is widely used in water purification systems due to its excellent transmission of UV light. Using bulk reels up to 1000 feet aid customers in providing installations with continuous length assemblies, free of connectors, and also reducing scrap when producing shorter length assemblies. Series 103 smoothbore and Series 203 metric tubing is similar to Series 101/201 PTFE respectively, but operates at the lower maximum temperature of 400°F (204°C). FEP tube is chemically inert, odorless, taste-less, non-wetting and non-leaching and is often used in fluid and material handling applications, such as chemical transfer. However, it also performs well in food & beverage or medical applications. Parker’s FEP resin meets the FDA requirements for repeated food contact and it is also USP Class VI compliant.
Markets:
• Fluid Transfer
• Life Science
• Food and Beverage
Features/Benefits:
• Offers best clarity of all fluoropolymers
• Long continuous lengths
• Chemically inert to nearly all industrial chemicals and solvents
• Weldable
• Non-wetting
• Nonflammable
• Lower cost alternative to PFA
Applications:
• UV applications
• Medical devices
• Thermal cycling
• Food/Beverage processing
• Robotics
• Gas sampling
• Chemical
• Instrumentation
Certifications/Compliance:
• ASTM D2116
• 21 CFR 177.1550 compliant
• USP Class VI Compliant
• UL 94 V-0 compliant
Technical Specifications:
• Extruded from virgin FEP (Fluorinated Ethylene Propylene)
• Qualified with Fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite and Thermoplastic Fittings and Valves Catalog CAT3501E USA) • Working and burst pressures rated at 73°F /23°C
• All dimensions are nominal
• Random lengths, continuous lengths available as a custom run
| Action | Part No. | Availability | Partner Available | Price | Application | Minimum Operating Temperature | Maximum Operating Temperature | Minimum Burst Pressure | Media | Compatible Fitting | Tube Inside Diameter | Tube Material | Specifications Met | Length per Package | Tube Outside Diameter | Minimum Bend Radius | Maximum Operating Pressure | Weight | Color | Order Size | Product Type | Tube Wall Thickness | Standard Pack Qty (ft) | Tube Inside Diameter | Tube Outside Diameter | Product Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103-0125031-NT-25 | Quote Required | $1.59/each | Fluid Transfer | -100 °F | 400 °F | 1880 psi | Water | TrueSeal™ | 0.79 mm | Fluorinated Ethylene Propylene (FEP) | UL 94 V-0 | 7.6 mm | 3.18 mm | 10 mm | 32 bar | 0.009 lb/ft | Natural | 1/8 | Industrial Wall | 0.031 | 25.0 | 0.062 | 0.125 | |||
| 103-0250047-NT-100 | Quote Required | 2500 In Stock | $3.52/each | Food & Beverage | -75 °C | 204 °C | 94 bar | Water | TrueSeal™ | 3.96 mm | Fluorinated Ethylene Propylene (FEP) | UL 94 V-0 | 30.4 mm | 6.35 mm | 3/4 inch | 340 psi | 0.028 lb/ft | Natural | 1/4 | Heavy Wall | 0.047 | 100.0 | 0.156 | 0.25 | ||
| 103-0250047-NT-1000 | Quote Required | TBD | Food & Beverage | -75 °C | 400 °F | 94 bar | Air | Compression | 0.156 inch | Fluorinated Ethylene Propylene (FEP) | ASTM D2116 | 1000 ft | 0.25 inch | 3/4 inch | 340 psi | 0.028 lb/ft | Natural | 1/4 | Heavy Wall | 0.047 | 1000.0 | 0.156 | 0.25 | |||
| 103-0250062-NT-100 | Quote Required | 300 In Stock | $4.06/each | Gas Sampling | -100 °F | 204 °C | 130 bar | Water | TrueSeal™ | 3.18 mm | Fluorinated Ethylene Propylene (FEP) | UL 94 V-0 | 30.4 mm | 6.35 mm | 3/4 inch | 470 psi | 0.034 lb/ft | Natural | 1/4 | Heavy Wall | 0.062 | 100.0 | 0.125 | 0.25 | ||
| 103-0375062-NT-100 | Quote Required | 460 In Stock | $6.93/each | Water Purification | -75 °C | 204 °C | 1160 psi | Air | Compression | 6.35 mm | Fluorinated Ethylene Propylene (FEP) | FDA 21 CFR 177.1550 | 30.4 mm | 9.52 mm | 38 mm | 20 bar | 0.085 kg/m | Clear | 3/8 | Heavy Wall | 0.062 | 100.0 | 0.25 | 0.375 | ||
| 103-0500062-NT-100 | Quote Required | $9.49/each | Gas Sampling | -100 °F | 204 °C | 58 bar | Water | TrueSeal™ | 0.375 inch | Fluorinated Ethylene Propylene (FEP) | UL 94 V-0 | 100 ft | 0.5 inch | 54 mm | 210 psi | 0.079 lb/ft | Clear | 1/2 | Heavy Wall | 0.062 | 100.0 | 0.375 | 0.5 | |||
| 103-0750062-NT-100 | Quote Required | $15.10/each | Water Purification | -75 °C | 400 °F | 36 bar | Industrial Gases | Compress-Align® | 15.88 mm | Fluorinated Ethylene Propylene (FEP) | FDA 21 CFR 177.1550 | 30.4 mm | 0.75 inch | 6 inch | 130 psi | 0.186 kg/m | Clear | 3/4 | Heavy Wall | 0.062 | 100.0 | 0.625 | 0.75 | |||
| 203-0600100-NT-100 | Quote Required | $3.04/each | Laboratory | -75 °C | 400 °F | 720 psi | Chemicals | Metric Compression | 4 mm | Fluorinated Ethylene Propylene (FEP) | FDA 21 CFR 177.1550 | 30.4 mm | 6 mm | 29 mm | 12 bar | 0.023 lb/ft | Natural | 6MM | Metric | 1 | 100.0 | 4 | 6 | Metric | ||
| 203-1000100-NT-100 | Quote Required | $4.63/each | Water Purification | -75 °C | 400 °F | 28 bar | Chemicals | Metric Compression | 8 mm | Fluorinated Ethylene Propylene (FEP) | UL 94 V-0 | 30.4 mm | 10 mm | 2-1/8 inch | 100 psi | 0.041 lb/ft | Natural | 10MM | Metric | 1 | 100.0 | 8 | 10 | Metric |
